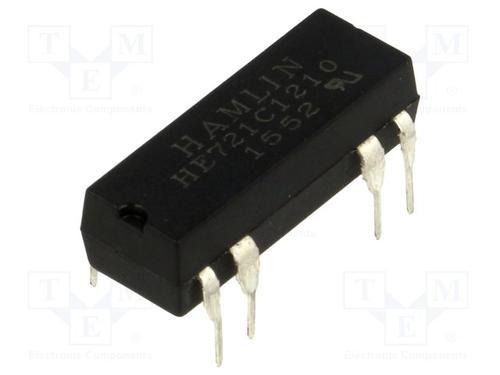

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

HE721C1210 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP
Voltage Rating (DC)	175 V
Insulation Resistance	10.0 GΩ
Contacts Type	SPDT
Contact Resistance	0.2 Ω
voltage rating	1.00 V
Contact Current Rating	0.25 A
Coil Voltage	12 VDC
Coil Current	24 mA
Coil Resistance	500 Ω
Carry Current	1.50 A
Coil Voltage (DC)	12 V
Input Power (Max)	5 W
Switching Current (Max)	0.25 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Maximum Contact Resistance (Max)	200 mΩ
	Show
Size-Length	19.5 mm
Size-Width	9.52 mm
Size-Height	5.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
