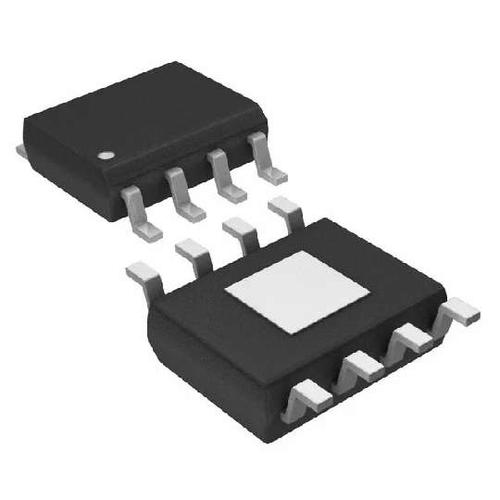

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The HIP2101 is a high frequency, 100V Half Bridge N-Channel power MOSFET driver IC. It is equivalent to the HIP2100 with the added advantage of full TTL/CMOS compatible logic input pins. The low-side and high-side gate drivers are independently controlled and matched to 13ns. This gives users total control over dead-time for specific power circuit topologies. Undervoltage protection on both the low-side and high-side supplies force the outputs low. An on-chip diode eliminates the discrete diode required with other driver ICs. A new level-shifter topology yields the low power benefits of pulsed operation with the safety of DC operation. Unlike some competitors, the high-side output returns to its correct state after a momentary undervoltage of the high-side supply.
- Features
- • Drives N-Channel MOSFET Half Bridge
- • SOIC, EPSOIC, QFN and DFN Package Options
- • SOIC, EPSOIC and DFN Packages Compliant with 100V Conductor Spacing Guidelines of IPC-2221
- • Pb-free Product Available (RoHS Compliant)
- • Bootstrap Supply Max Voltage to 114VDC
- • On-Chip 1ΩBootstrap Diode
- • Fast Propagation Times for Multi-MHz Circuits
- • Drives 1000pF Load with Rise and Fall Times Typ. 10ns
- • TTL/CMOS Input Thresholds Increase Flexibility
- • Independent Inputs for Non-Half Bridge Topologies
- • No Start-Up Problems
- • Outputs Unaffected by Supply Glitches, HS Ringing Below Ground, or HS Slewing at High dv/dt
- • Low Power Consumption
- • Wide Supply Range
- • Supply Undervoltage Protection
- • 3Ω Output Driver Resistance
- • QFN/DFN Package:
- \- Compliant to JEDEC PUB95 MO-220 QFN - Quad Flat No Leads - Package Outline
- \- Near Chip Scale Package footprint, which improves PCB efficiency and has a thinner profile
- Applications
- • Telecom Half Bridge Power Supplies
- • Avionics DC-DC Converters
- • Two-Switch Forward Converters
- • Active Clamp Forward Converters
HIP2101EIBZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Supply Voltage (DC) | 9.00V (min) |
| Rise/Fall Time | 10 ns |
| Number of Outputs | 2 Output |
| Output Current | 2 A |
| Number of Positions | 8 Position |
| Power Dissipation | 3.1 W |
| Rise Time | 600 ns |
| Fall Time | 600 ns |
| Fall Time (Max) | 600 ns |
| Fall Time (Max) | 600 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 3100 mW |
| Supply Voltage | 9V ~ 14V |
| Supply Voltage (Max) | 14 V |
| Supply Voltage (Min) | 9 V |
| Show | |
| Size-Length | 4.98 mm |
| Size-Width | 3.99 mm |
| Size-Height | 1.55 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
