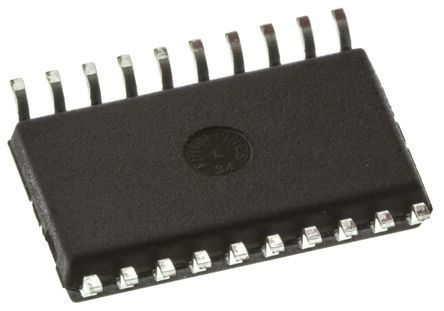

Image is for your reference only,please check specifications for details

HIP4080AIBZ - Intersil
Manufacturer:
Intersil
ManyChip's Part#:
MC29715182
Category:
FET Driver
Package:
SOIC-20
Datasheet:
Datasheet 3D Model
Description:
Intersil HIP4080AIBZ, Quad MOSFET Power Driver 2.5A Full Bridge, 9.5 → 15V, 20Pin SOIC W
Stock Locations:
Availability:
875 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.52

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The HIP4080AIBZ is a high frequency medium voltage Full Bridge N-channel FET Driver IC. The HIP4080A includes an input comparator, used to facilitate the "hysteresis" and PWM modes of operation. Its HEN (high enable) lead can force current to freewheel in the bottom two external power MOSFETs, maintaining the upper power MOSFETs off. Since it can switch at frequencies up to 1MHz, the HIP4080A is well suited for driving voice coil motors, switching power amplifiers and power supplies. HIP4080A can also drive medium voltage brush motors and two HIP4080As can be used to drive high performance stepper motors, since the short minimum "on-time" can provide fine micro-stepping capability. Short propagation delays of approximately 55ns maximize control loop crossover frequencies and dead-times which can be adjusted to near zero to minimize distortion, resulting in precise control of the driven load.
Drives N-channel FET full bridge including high side chop capability
Bootstrap supply maximum voltage to 95VDC
Drives 1000pF load at 1MHz in free air at 50°C with rise and fall times of typically 10ns
User-programmable dead time
Charge-pump and bootstrap maintain upper bias supplies
DIS (Disable) pin pulls gates low
Input logic thresholds compatible with 5 to 15V logic levels
Very low power consumption
Under-voltage protection
ESD sensitive device, take proper precaution while handling the device.

Show

HIP4080AIBZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SOIC-20
Frequency	1 MHz
Supply Voltage (DC)	9.50 V, 15.0 V (max)
Rise/Fall Time	10 ns
Number of Outputs	4 Output
Output Voltage	86.3 V
Output Current	2.5 A
Number of Channels	4 Channel
Power Dissipation	0.47 W
Rise Time	25 ns
Output Current (Max)	2.5 A
Fall Time	25 ns
Fall Time (Max)	25 ns
Fall Time (Max)	25 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	470 mW
Supply Voltage	9.5V ~ 15V
Supply Voltage (Max)	15 V
Supply Voltage (Min)	9.5 V
	Show
Size-Length	13 mm
Size-Width	7.6 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
