HIP4082IBZ - Intersil
Manufacturer:
Intersil
ManyChip's Part#:
MC21427433
Category:
FET Driver
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:

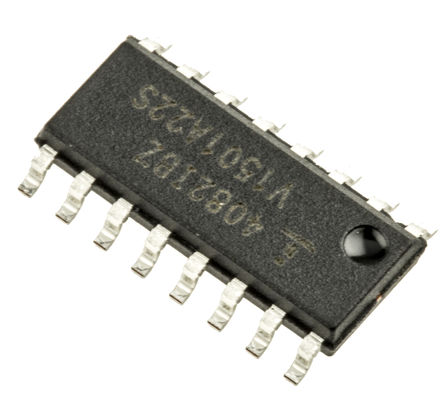

Intersil HIP4082IBZ, Quad MOSFET Power Driver 1.25A Full/Half Bridge, 8.5 → 15V, Non-Inverting, 16Pin SOIC
Stock Locations:
Availability:
61 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.06

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The HIP4082IBZ is a medium frequency, medium voltage half-bridge N-channel MOSFET Driver IC. Specifically targeted for PWM motor control and UPS applications, bridge based design is made simple and flexible with the half-bridge driver. With operation up to 80V, the device is best suited to applications of moderate power levels. It has a flexible input protocol for driving every possible switch combination except those which would cause a shoot-through condition. It reduced drive current allows smaller packaging and it has a much wider range of programmable dead times (0.1 to 4.5ms) making it ideal for switching frequencies up to 200kHz. It does not contain an internal charge pump, but does incorporate non-latching level-shift translation control of the upper drive circuits.
Independently drives 4 N-channel FET in full-bridge configurations
95VDC Bootstrap supply maximum voltage
Drives 1000pF load at 1MHz in free air at 50°C
User-programmable dead time
DIS (disable) overrides input control and refreshes bootstrap capacitor when pulled low
Shoot-through protection
Under voltage protection
Stresses those listed in absolute maximum ratings may cause permanent damage to the device.

Show

HIP4082IBZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	8.50V (min)
Rise/Fall Time	9 ns
Number of Outputs	4 Output
Output Voltage	0.7.1.2 V
Output Current	1.25 A
Number of Channels	4 Channel
Number of Positions	16 Position
Rise Time	25 ns
Output Current (Max)	1.25 A
Fall Time	25 ns
Fall Time (Max)	20 ns
Fall Time (Max)	20 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Supply Voltage	8.5V ~ 15V
Supply Voltage (Max)	15 V
Supply Voltage (Min)	8.5 V
	Show
Size-Length	10 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
