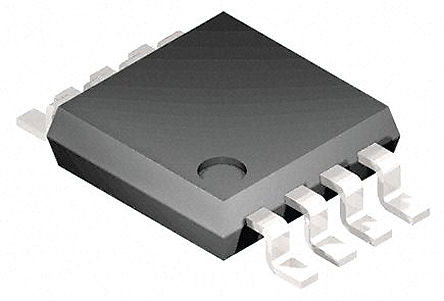

Image is for your reference only,please check specifications for details

HMC213AMS8E - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC58948055
Category:
RF Module
Package:
MSOP-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES HMC213AMS8E RF Double Balanced Mixer IC, RF/LO Range 1.5GHz to 3.6GHz, MSOP-8
Stock Locations:
Availability:
343 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 11.48

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The HMC213AMS8E is an ultra miniature passive Double-balanced Mixer constructed of GaAs Schottky diodes and novel planar transformer baluns on the chip. The device can be used as an up-converter, down-converter, biphase (de)modulator or phase comparator. The consistent MMIC performance will improve system operation and assure regulatory compliance.
8.5dB Conversion loss
40dB LO/RF isolation

Show

HMC213AMS8E Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Frequency	1.5GHz ~ 4.5GHz
Power Rating	0.69 W
Number of Positions	8 Position
Power Dissipation	0.69 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	690 mW
	Show
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	End of Life
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
