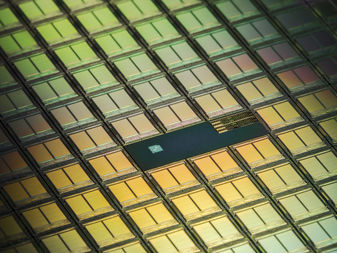

Image is for your reference only,please check specifications for details
- HMC460 - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC38693880
-
Category:Amplifier chip
-
Datasheet:Datasheet 3D Model
-
Description:* Коэффициент шума: * 2,5 дБ @ 10 ГГц * Усиление: * 14 дБ @ 10 ГГц * Выходная мощность P1dB: +16 дБм @ 10 ГГц * Напряжение питания: * +8 В @ 60 мА * Согласованный вход/выход 50 Ом * Размер кристалла: * 3,12 x 1,63 x 0,1 мм
-
Stock Locations:
-
Availability:251 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 138.89
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Детали продукта
- HMC460 — это кристалл малошумящего распределенного усилителя на GaAs MMIC pHEMT, работающий в диапазоне от постоянного тока до 20 ГГц. Усилитель обеспечивает коэффициент усиления 14 дБ, коэффициент шума 2,5 дБ и выходную мощность +16 дБм при сжатии усиления на 1 дБ, потребляя всего 60 мА от источника питания +8 В. Усилитель HMC460 легко интегрируется в многокристальные модули (MCM) благодаря своим малым размерам. Все данные приведены для кристалла в 50-омном тестовом держателе, подключенном с помощью проволочных выводов диаметром 0,025 мм (1 мил) минимальной длиной 0,31 мм (12 мил).
- Применения
- Телекоммуникационная инфраструктура
- Микроволновое радио и VSAT
- Военная и космическая техника
- Испытательное оборудование
- ### Особенности и преимущества
- Коэффициент шума: 2,5 дБ на частоте 10 ГГц
- Коэффициент усиления: 14 дБ на частоте 10 ГГц
- Выходная мощность P1dB: +16 дБм на частоте 10 ГГц
- Напряжение питания: +8 В при 60 мА
- Согласованные вход/выход 50 Ом
- Размер кристалла: 3,12 x 1,63 x 0,1 мм
HMC460 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 6 Pin |
| Frequency | 0Hz ~ 20GHz |
| Supply Voltage (DC) | 7.50V (min) |
| Supply Current | 60 mA |
| Power Dissipation | 2170 mW |
| Gain | 13 dB |
| Test Frequency | 6GHz ~ 18GHz |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 2170 mW |
| Supply Voltage | 8 V |
| Supply Voltage (Max) | 8.5 V |
| Supply Voltage (Min) | 7.5 V |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
