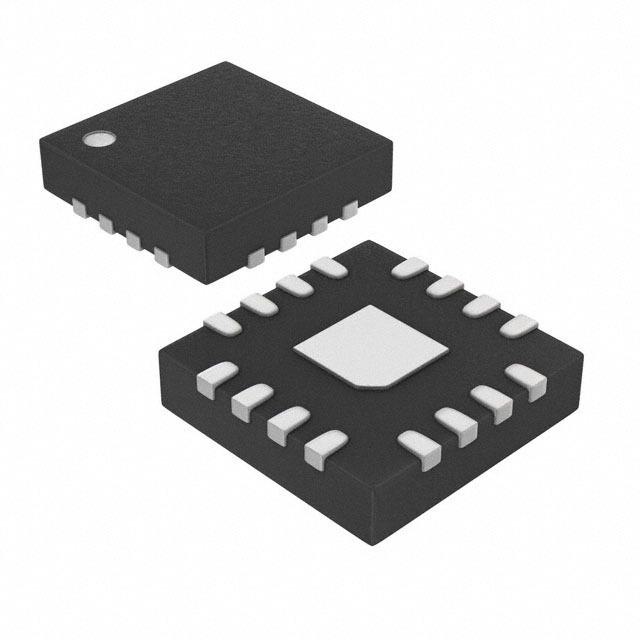

HMC547LC3 - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC59324364
Category:
RF Module
Package:
VFCQFN-16
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES HMC547LC3 RF Switch IC, SPDT, Non-Reflective, DC to 28GHz, -5.5V to -4.5V, HQFN-16
Stock Locations:
Availability:
10 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 96.5

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The HMC547LC3 is a general purpose broadband high isolation non-reflective GaAs MESFET SPDT Switch covering DC to 28.0GHz, the switch offers over 40dB isolation and less than 2dB insertion loss at midband. The wide bandwidth, fast switching and compact size make this absorptive SPDT ideal for military EW/ECM and test equipment applications. The switch operates using complementary negative control voltage logic lines of -5/0V and requires no bias supply.
45dB at 10GHz, 40dB at 20GHz High isolation
1.6dB at 10GHz, 1.9dB at 20GHz Low insertion loss
6ns Fast switching
Non-reflective design

Show

HMC547LC3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	16 Pin
Case/Package	VFCQFN-16
Frequency	28000 MHz
Number of Positions	16 Position
Power Dissipation	215 mW
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	215 mW
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	End of Life
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
