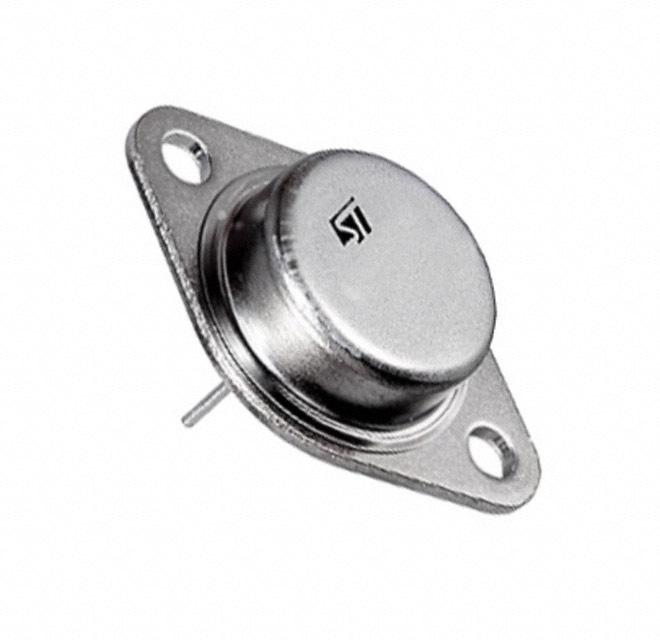

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The LM117, LM217, LM317 are monolithic integrated circuits in TO-220, TO-220FP, TO-3 and D²PAK packages intended for use as positive adjustable voltage regulators.
They are designed to supply more than 1.5 A of load current with an output voltage adjustable over a 1.2 to 37 V range.
Features
■ Output voltage range: 1.2 to 37 V
■ Output current in excess of 1.5 A
■ 0.1% Line and load regulation
■ Floating operation for high voltages
■ Complete series of protections: current limiting, thermal shutdown and SOA control

Show

LM117K Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-3
Supply Voltage (DC)	40.0V (max)
Number of Outputs	1 Output
Output Voltage	1.2V ~ 37V
Output Current	1.5 A
Number of Positions	3 Position
Input Voltage (Max)	40 V
Input Voltage (Min)	4.2 V
Output Voltage (Max)	37 V
Output Voltage (Min)	1.2 V
Output Current (Max)	1.5 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	39.5 mm
Size-Width	26.2 mm
Size-Height	8.7 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
