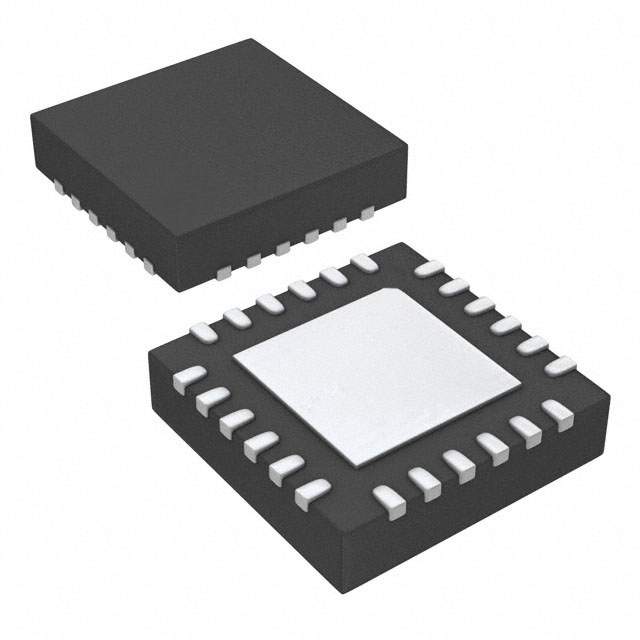

HMC641ALC4 - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC5678252
Category:
RF Module
Package:
QFN-24
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES HMC641ALC4 RF Switch IC, SP4T, Non-Reflective, DC to 20GHz, 2:4 TTL Decoder, -5.5V to -4.5V, QFN-24
Stock Locations:
Availability:
258 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 88.16

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The HMC641ALC4 is a broadband non-reflective GaAs MMIC pHEMT SP4T Switch covering DC to 20GHz, this switch offers high isolation, low insertion loss and on-chip termination of isolated ports. This switch also includes an on board binary decoder circuit which reduces the number of required logic control lines from four to two. The HMC641ALC4 is controlled with 0/-5V logic, exhibits fast switching speed and consumes much less DC current than pin diode based solutions.
DC to 20GHz Broadband performance
42dB at 12GHz High isolation
2.1dB at 12GHz Low insertion loss
Integrated 2:4 TTL decoder

Show

HMC641ALC4 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	QFN-24
Supply Voltage (DC)	-5.50 V (min)
Supply Current	1.8 mA
Number of Positions	24 Position
Test Frequency	20 GHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
