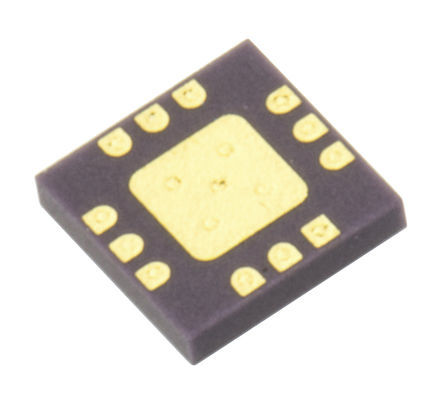

Image is for your reference only,please check specifications for details

HMC773LC3B - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC120330066
Category:
RF Module
Package:
VFCQFN-12
Datasheet:
Datasheet 3D Model
Description:
NA ONLY -HMC773 Series 6-26GHz 9dB Loss 38dB Isolation SMT GaAs MMIC Mixer
Stock Locations:
Availability:
249 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 78.72

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The HMC773LC3B is a GaAs general purpose Double-balanced MMIC Fundamental Mixer used as an up-converter or down-converter between 6 and 26GHz. This mixer requires no external components or matching circuitry. The HMC773LC3B provides excellent LO to RF and LO to IF suppression due to optimized balun structures. The mixer operates with LO drive levels above +13dBm. The HMC773LC3B eliminates the need for wire bonding.
No DC bias required passive
22dBm Input IP3
38dB LO/RF isolation
DC to 8GHz Wide IF bandwidth

Show

HMC773LC3B Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	12 Pin
Case/Package	VFCQFN-12
Frequency	6GHz ~ 26GHz
Number of Positions	12 Position
Power Dissipation	0.21 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	210 mW
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.92 mm
Product Lifecycle Status	End of Life
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
