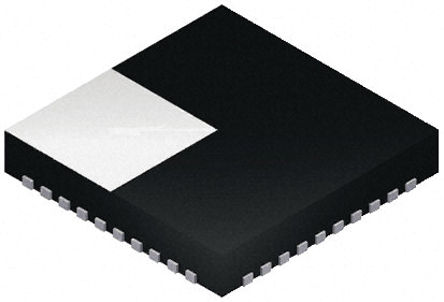

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The HMC833LP6GE is a low noise wide band fractional-N Phase-Locked-Loop (PLL) that features an integrated voltage controlled oscillator (VCO) with a fundamental frequency of 1500 to 3000MHz and an integrated VCO output divider (divide by 1/2/4/6.../60/62) and doubler, that together allow the HMC833LP6GE to generate frequencies from 25 to 6000MHz. The integrated Phase Detector (PD) and delta-sigma modulator, capable of operating at up to 100MHz, permit wider loop-bandwidths with excellent spectral performance. The HMC833LP6GE features industry leading phase noise and spurious performance, across all frequencies that enable it to minimize blocker effects and improve receiver sensitivity and transmitter spectral purity.
- -110dBc/Hz in Band typical ultra low phase noise
- Exact frequency mode
- Built in digital self test
HMC833LP6GE Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 40 Pin |
| Case/Package | VQFN-40 |
| Frequency | 6 GHz |
| Supply Voltage (DC) | 3.00V (min) |
| Number of Outputs | 1 Output |
| Number of Circuits | 1 Circuit |
| Number of Positions | 40 Position |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 3V ~ 5.2V |
| Supply Voltage (Max) | 3.5 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Length | 6.1 mm |
| Size-Width | 6.1 mm |
| Size-Height | 0.9 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
| Mil-Spec | Yes |
| ECCN Code | EAR99 |
