HSC10022RJ - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC24741876
Category:
Resistor
Package:
Axial, Box
Datasheet:
Datasheet 3D Model
Description:

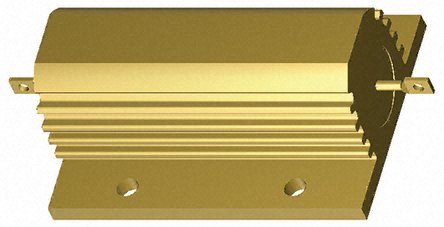

Res Wirewound 22Ω 5% 100W 50ppm/℃ Aluminum Housed AXL Flange Mount Loose/Tray
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TE Connectivity HSC100 series are wirewound resistors with aluminium housing. These are extremely stable, high quality wirewound resistors capable of dissipating high power in a limited space with relatively low surface temperature. The power is rapidly dissipated as heat through the aluminium housing to specified heat sink. These standard and custom designed aluminium housed resistors are used in general purpose applications such as power supplies, power generation and in traction industry.
High power dissipation of 100W (with heat sink)
Resistance value ranges from 0.05ohm to 100Kohm
Working voltage is 1900V
Low inductance
±10%, ±5%, ±3%, ±2%, ±0.5% & ±0.25% tolerance
Temperature coefficient is 50ppm/°C(below 100R), 30ppm/°C( above 100R)
Dimensions is H= 26mm, W= 47.5mm, L= 65.5mm with 35mm x 37mm fixing centres

Show

HSC10022RJ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Chassis
Number of Pins	2 Pin
Case/Package	Axial, Box
Voltage Rating (DC)	1.90 kV
Voltage Rating (AC)	1.90 kV
Capacitance Tolerance	±5 %
Power Rating	100 W
Resistance	22 Ω
Resistance Tolerance	±5 %
Voltage Rating	1.9 kV
	Show
Size-Length	87.5 mm
Size-Width	47.5 mm
Size-Height	26 mm
Lead Length	11 mm
Operating Temperature	-55℃ ~ 200℃
Temperature Coefficient	±50 ppm/℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8533290000
ECCN Code	EAR99
