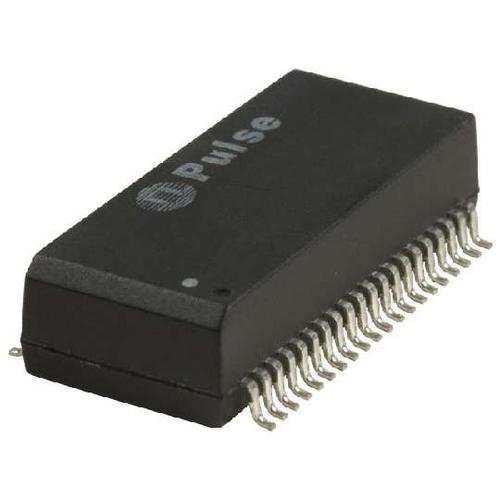

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * RoHS peak reflow temperature rating 245°C * Symmetrical transmit and receive channelsfor Auto MDI/MDIX capability * Approved for use with the Broadcom BCM5226 and Level One LXT9784 * Meets IEEE 802.3 specification
HX1234NL Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 40 Pin |
| Case/Package | SMD |
| Number of Channels | 1 Channel |
| Isolation Voltage | 1.5 kV |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 28.58 mm |
| Size-Width | 16 mm |
| Size-Height | 7.11 mm |
| Weight | 4.84 g |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
