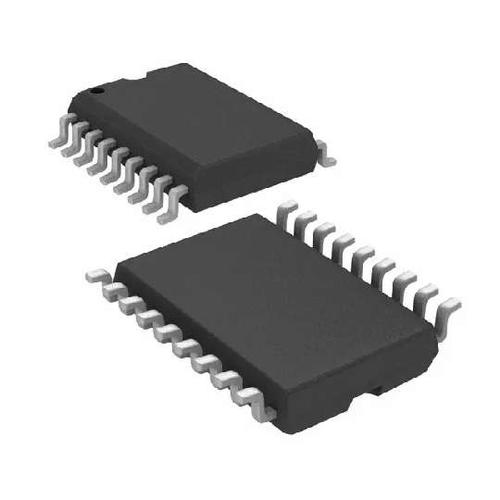

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ICL3222CBZ is a powered RS-232 Transmitter/Receiver with part marking. It meets ElA/TIA-232 and V.28/V.24 specifications, even at VCC = 3V. Efficient on-chip charge pumps, coupled with manual and automatic power-down functions, reduce the A trickle. Data rates greater than 250kbps are guaranteed at worst case load conditions. This family is fully compatible with 3.3V only systems, mixed 3.3 and 5V systems and 5V only systems. It features an automatic power-down function which powers down the on-chip power-supply and driver circuits. This occurs when an attached peripheral device is shut off or the RS-232 cable is removed, conserving system power automatically without changes to the hardware or operating system. This device power up again when a valid RS-232 voltage is applied to any receiver input.
15kV ESD protected (human body model)
Low power, Pin-compatible upgrade for 5V MAX221
Latch-up free
On-chip voltage converters require only four external 0.1µF capacitors
Receiver hysteresis for improved noise immunity
250kbps Guaranteed minimum data rate
6V/ms Guaranteed minimum slew rate
1mA Low supply current in power-down state

Show

ICL3222CBZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	18 Pin
Case/Package	SOIC-18
Supply Voltage (DC)	5.50 V, 5.50 V (max)
Supply Current	300 µA
Number of Positions	18 Position
Data Rate	500 kbps
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	3V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3 V
	Show
Size-Length	11.75 mm
Size-Width	7.6 mm
Size-Height	2.35 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
