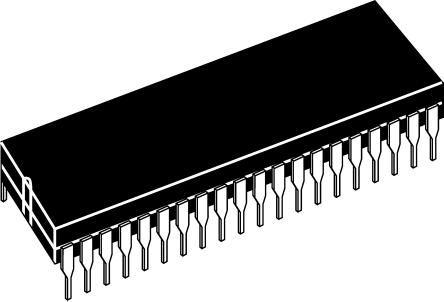

Image is for your reference only,please check specifications for details
- ICL7109CPL+ - Maxim Integrated
-
Manufacturer:Maxim Integrated
-
ManyChip's Part#:MC22430139
-
Category:Analog to Digital, ADC IC
-
Package:DIP-40
-
Datasheet:Datasheet 3D Model
-
Description:ADC, Dual-Slope, 12Bit, 1 Func, 1Channel, Parallel, Word Access, CMOS, PDIP40, 0.6INCH, LEAD FREE, PLASTIC, DIP-40
-
Stock Locations:
-
Availability:49 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 33.28
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ICL7109CPL+ is a 12-bit A/D Converter with 3-state binary outputs. The ICL7109 is a monolithic 12-bit A/D converter designed for easy interface with microprocessors and UARTs. The 12-bit binary plus polarity and over-range outputs can be directly interfaced to a micro-processor bus. In this mode the ICL7109 is controlled by the microprocessor through the chip select and two byte enable inputs. For remote data logging applications the ICL7109 outputs are easily converted to a UART handshake mode, working with industry standard UARTs to provide serial data transmission. This device offers high accuracy by lowering rollover error to less than 1 count and zero reading drift to less than 1µV/°C. In many data acquisition systems the ICL7109 is an attractive, one-per-channel alternative to analogue multiplexing due to its low power consumption and input bias current.
- Zero integrator phase for fast overload recovery
- Hysteresis and crosstalk eliminated
- Enhanced bus driving capability
- Byte organized three-state outputs
- UART handshake mode for serial interfacing
- True differential input and reference
- Up to 30 conversions per second
- Significantly improved ESD protection
- Monolithic, low power CMOS design
- ESD sensitive device, take proper precaution while handling the device.
ICL7109CPL+ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 40 Pin |
| Case/Package | DIP-40 |
| Supply Voltage (DC) | -5.00 V (min) |
| Supply Current | 700 µA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 40 Position |
| Number of Bits | 12 Bit |
| Power Dissipation | 500 mW |
| Sample Rate | 30 SPS |
| Number of ADCs | 1 ADC |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Number of Input Channels | 1 Channel |
| Supply Voltage (Max) | 5 V |
| Show | |
| Size-Length | 52.71 mm |
| Size-Width | 14.61 mm |
| Size-Height | 4.45 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
