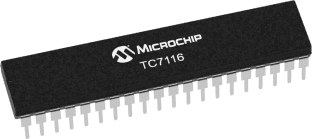

Image is for your reference only,please check specifications for details

TC7116CPL - Microchip
Manufacturer:
Microchip
ManyChip's Part#:
MC20551193
Category:
Analog to Digital, ADC IC
Package:
PDIP-40
Datasheet:
Datasheet 3D Model
Description:
MICROCHIP TC7116CPL Analog to Digital Converter, 3.5Bit, Single, 5V, DIP
Stock Locations:
Availability:
232 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.36

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TC7116CPL is a 3-1/2-digit CMOS Analog-to-digital Converter (ADC) containing all the active components necessary to construct a 0.05% resolution measurement system. Seven-segment decoders, polarity and digit drivers, voltage reference and clock circuit are integrated on-chip. This device incorporates a display hold (HLDR) function. The displayed reading remains indefinitely, as long as HLDR is held high. Conversions continue, but output data display latches are not updated. The reference low input (VREF-) is not available, as it is with the TC7106/7107. VREF- is tied internally to analog common in the TC7116A/7117A devices. It reduces linearity error to less than 1 count. High-impedance differential inputs offer 1pA leakage current and a 10¹²R input impedance. The 15µVP-P noise performance enables a rock solid reading. The auto-zero cycle ensures a zero display reading with a 0V input.
Display hold function
Directly drives LCD or LED display
Zero reading with zero input
Auto-zero cycle eliminates need for zero
Adjustment potentiometer
True polarity indication

Show

TC7116CPL Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	40 Pin
Case/Package	PDIP-40
Power Rating	10.0 W
Output Voltage	700 mV
Supply Current	800 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	40 Position
Number of Bits	3 Bit
Power Dissipation	10 mW
Power Consumption	1.23 W
Number of ADCs	1 ADC
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	1230 mW
Number of Input Channels	1 Channel
Supply Voltage	9 V
Supply Voltage (Max)	5 V
Input Voltage	0.2V, 2V
	Show
Size-Length	52.45 mm
Size-Width	14.1 mm
Size-Height	4.06 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
