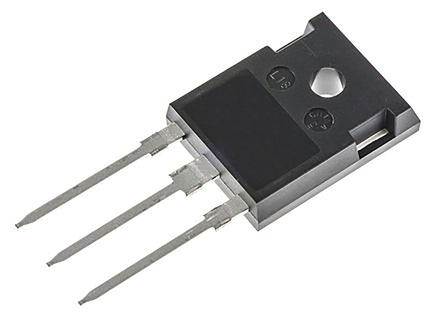

Image is for your reference only,please check specifications for details

IDW10G65C5 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC104733957
Category:
Schottky Diode
Package:
TO-247-3
Datasheet:
Datasheet 3D Model
Description:
INFINEON IDW10G65C5 Silicon Carbide Schottky Diode, thinQ 5G 650V Series, Single, 650V, 10A, 15NC, TO-247
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IDW10G65C5 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Power Dissipation	65 W
Forward Current	10 A
Max Forward Surge Current (Ifsm)	58 A
Maximum Forward Voltage (Max)	2.1 V
Forward Current (Max)	10 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature (Max)	175 ℃
	Show
Size-Length	16.13 mm
Size-Width	5.21 mm
Size-Height	21.1 mm
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	PB free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
