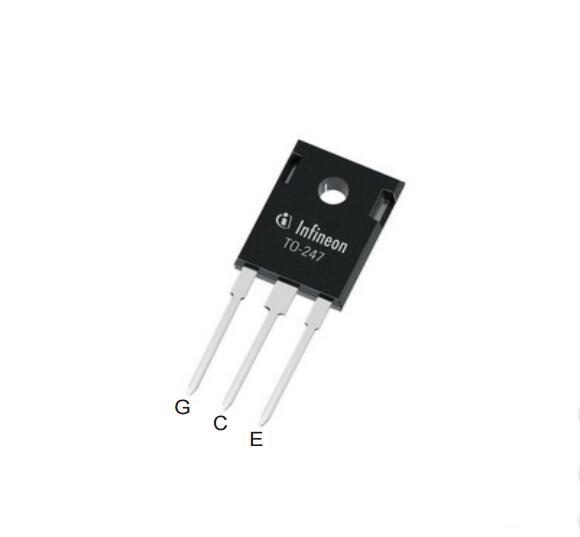

Image is for your reference only,please check specifications for details
- IKW75N65EH5 - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC29120000
-
Category:IGBT Transistor, IGBT Module
-
Package:TO-247-3
-
Datasheet:Datasheet 3D Model
-
Description:650V DuoPack IGBT and full-rated diode High speed series fifth generation
-
Stock Locations:
-
Availability:3,183 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- 650V breakthrough voltage
- Compared to Infineon’s best-in-class HighSpeed 3 family
- Factor 2.5 lower Q g
- Factor 2 reduction in switching losses
- 200mV reduction in V CE(sat)
- Co-packed with Infineon’s new Rapid Si-diode technology
- Low C OES/E OSS
- Mild positive temperature coefficient V CE(sat)
- Temperature stability of V f
- Benefits:
- Best-in-class efficiency, resulting in lower junction and
- case temperature leading to higher device reliability
- 50V increase in the bus voltage possible without compromising
- reliability
- Higher power density design
- Target Applications:
- Uninterruptible Power Supplies
- Welding
IKW75N65EH5 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Case/Package | TO-247-3 |
| Power Rating | 395 W |
| Breakdown Voltage (Collector to Emitter) | 650 V |
| Reverse recovery time | 92 ns |
| Show | |
| Operating Temperature | -40℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
