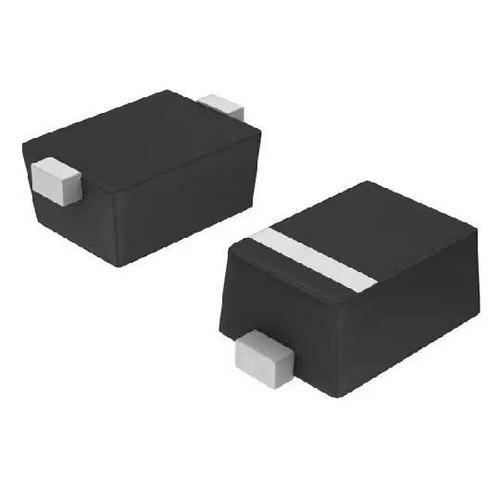

Image is for your reference only,please check specifications for details

NSR0620P2T5G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC2848457
Category:
Schottky Diode
Package:
SOD-923
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NSR0620P2T5G Small Signal Schottky Diode, Single, 20V, 500mA, 520mV, 1A, 125℃
Stock Locations:
Availability:
112 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.11

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NSR0620P2T5G is a Schottky Barrier Diode optimized for very low forward voltage drop, low leakage current and used in a wide range of DC-DC converter, clamping and protection applications in portable devices. This SOD-923 miniature package enables designers to meet the challenging task of achieving higher efficiency and meeting reduced space requirements. It is used in LCD and keypad backlighting, camera photo flash, buck and boost DC-DC converter, reverse voltage and current protection, mobile handsets, mp3 players, digital camera and camcorders, notebook PCs & PDAs and GPS.
3500mV at 100mA Very low forward voltage drop
2.0uA at 10V Low reverse current VR
Very high switching speed 4.0ns at 10mA
12pF at 1.0V Low capacitance
AEC Qualified
Pb-free, halogen free/BFR free

Show

NSR0620P2T5G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-923
Number of Positions	2 Position
Forward Voltage	520mV @500mA
Thermal Resistance	520℃/W (RθJA)
Reverse recovery time	4 ns
Forward Current	500 mA
Max Forward Surge Current (Ifsm)	1 A
Maximum Forward Voltage (Max)	520 mV
Forward Current (Max)	500 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	570 mW
	Show
Size-Length	0.8 mm
Size-Width	0.6 mm
Size-Height	0.37 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
