IL3522E - NVE Corp
Manufacturer:
NVE Corp
ManyChip's Part#:
MC11011657
Category:
Interface IC, Interface Controller
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:

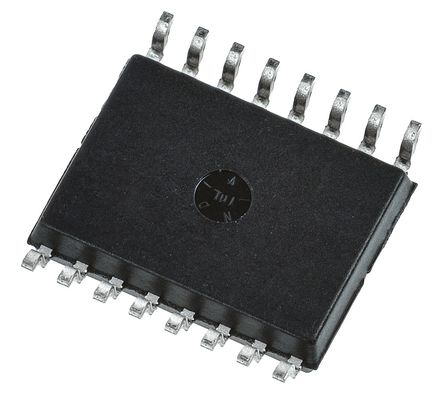

NVE IL3522E RS422 / RS485 Transceiver IC, 1 Isolated Driver, 40Mbps, 3V to 5.5V, SOIC-16
Stock Locations:
Availability:
207 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.3

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IL3522E Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	3.00V (min)
Number of Channels	3 Channel
Number of Positions	16 Position
Data Rate	20.0 Mbps
Isolation Voltage	2500 Vrms
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3 V
	Show
Size-Length	10.5 mm
Size-Width	7.62 mm
Size-Height	2.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2016/06/20
