Description

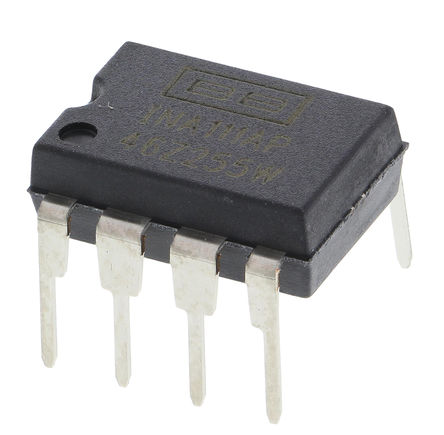

The INA111AP is a high speed FET-input Instrumentation Amplifier uses a current-feedback topology providing extended bandwidth (2MHz at G=10) and fast settling time (4us to 0.01% at G=100). A single external resistor sets any gain from 1 to over 1000. Offset voltage and drift are laser trimmed for excellent DC accuracy. The amplifier"s FET inputs reduce input bias current to under 20pA, simplifying input filtering and limiting circuitry.
20pA Maximum FET input
5µV/°C Maximum low offset voltage drift
Green product and no Sb/Br
ESD sensitive device, take proper precaution while handling the device.

Show

INA111AP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Operating Voltage	6V ~ 18V
Supply Current	3.3 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	115 dB
Quiescent Current	3.30 mA
Bandwidth	2 MHz
Slew Rate	17.0 V/μs
Gain Bandwidth Product	2 MHz
Input Offset Voltage	1 mV
Input Bias Current	2 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	2 MHz
Gain Bandwidth	75 dB
Minimum CMRR Range	75 dB
Supply Voltage (Max)	30V ~ 50V
Supply Voltage (Min)	12 V
	Show
Size-Length	9.81 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
