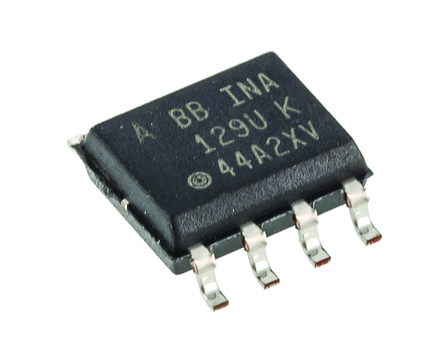

Image is for your reference only,please check specifications for details
- INA129UA - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC5558080
-
Category:Instrumentation Amplifier IC
-
Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:Instrument Amplifier, 1 Amplifier, 125μV, 4V/µs, 1.3MHz, ± 2.25V to ± 18V, SOIC
-
Stock Locations:
-
Availability:295 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 15.1
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The INA128 and INA129 are low-power, general purpose instrumentation amplifiers offering excellent accuracy. The versatile 3-op amp design and small size make these amplifiers ideal for a wide range of applications. Current-feedback input circuitry provides wide bandwidth even at high gain (200 kHz at G = 100).
- A single external resistor sets any gain from 1 to 10,000. The INA128 provides an industry-standard gain equation; the INA129 gain equation is compatible with the AD620.
- The INA12x is laser-trimmed for very low offset voltage (50 µV), drift (0.5 µV/°C) and high common-mode rejection (120 dB at G ≥ 100). The INA12x operates with power supplies as low as ±2.25 V, and quiescent current is only 700 µA, ideal for battery-operated systems. Internal input protection can withstand up to ±40 V without damage.
- The INA12x is available in 8-pin plastic DIP and SO-8 surface-mount packages, specified for the 40°C to 85°C temperature range. The INA128 is also available in a dual configuration, the INA2128.
INA129UA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Supply Voltage (DC) | 36.0V (max) |
| Supply Current | 700 µA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Common Mode Rejection Ratio | 130 dB |
| Quiescent Current | 700 µA |
| Bandwidth | 1.3 MHz |
| Slew Rate | 4.00 V/μs |
| Gain Bandwidth Product | 1.3 MHz |
| Gain | 10.0 kdB |
| Input Offset Voltage | 125 µV |
| Input Bias Current | 20 nA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 1.3 MHz |
| Minimum CMRR Range | 73 dB |
| Supply Voltage (Max) | 30V ~ 50V |
| Show | |
| Size-Length | 4.9 mm |
| Size-Width | 3.91 mm |
| Size-Height | 1.5 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
