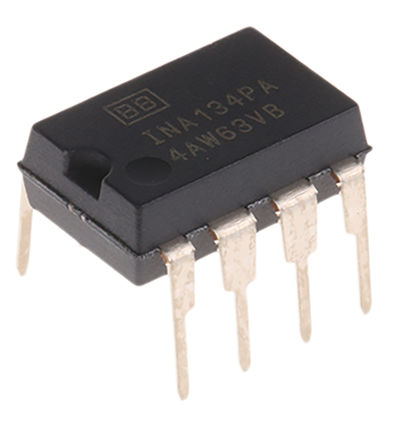

Image is for your reference only,please check specifications for details

INA134PA - TI
Manufacturer:
TI
ManyChip's Part#:
MC2008215
Category:
Audio Amplifier IC
Package:
PDIP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS INA134PA Audio Differential Line Receiver IC, 4V to 18V, DIP-8
Stock Locations:
Availability:
215 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.31

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The INA134PA is an audio differential Line Receiver consisting of high performance op-amps with on-chip precision resistors. This receiver is fully specified for high performance audio applications and has excellent ac specifications, including low distortion 0.0005% at 1kHz and high slew rate 14V/µs, assuring good dynamic response. In addition, wide output voltage swing and high output drive capability allow use in a wide variety of demanding applications. The dual version features completely independent circuitry for lowest crosstalk and freedom from interaction, even when overdriven or overloaded. The INA134 receiver"s on-chip resistors are laser trimmed for accurate gain and optimum common-mode rejection. Furthermore, excellent TCR tracking of the resistors maintains gain accuracy and common-mode rejection over-temperature. Operation is guaranteed from ±4V to ±18V.
0.0005% at f=1kHz Low distortion
3µs to 0.01% Fast settling time
2.9mA Maximum low quiescent current
90dB High CMRR
Green product and no Sb/Br
ESD sensitive device, take proper precaution while handling the device.

Show

INA134PA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Supply Voltage (DC)	15.0 V
Operating Voltage	8V ~ 36V
Current Rating	60.0 A
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	74 dB
Quiescent Current	2.40 mA
Bandwidth	3.1 MHz
Slew Rate	14.0 V/μs
Input Offset Voltage	1 mV
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Minimum CMRR Range	74 dB
Supply Voltage (Max)	18 V
Supply Voltage (Min)	4 V
	Show
Size-Length	9.81 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
