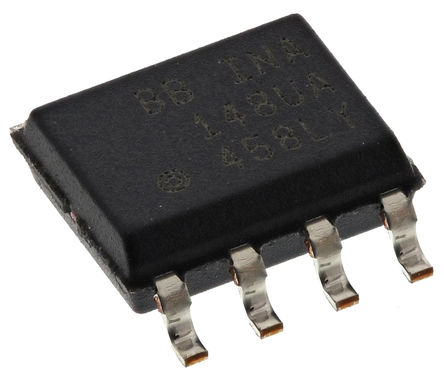

Image is for your reference only,please check specifications for details

INA148UA - TI
Manufacturer:
TI
ManyChip's Part#:
MC9624800
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS INA148UA Differential Amplifier, Common-Mode Voltage, 1 Amplifiers, 5mV, 100kHz, -55℃, 125℃
Stock Locations:
Availability:
484 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.79

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The INA148 is a precision, low-power, unity-gain difference amplifier with a high common-mode input voltage range. It consists of a monolithic precision bipolar op amp with a thin-film resistor network.
The on-chip resistors are laser trimmed for an accurate 1V/V differential gain and high common-mode rejection. Excellent temperature tracking of the resistor network maintains high gain accuracy and common-mode rejection over temperature. The INA148 will operate on single or dual supplies.
The INA148 is available in a small SO-8 surface-mount package and it is specified for the 40°C to +85°C extended industrial temperature range.

Show

INA148UA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	36.0V (max)
Supply Current	260 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	70 dB
Quiescent Current	600 µA
Bandwidth	100 kHz
Slew Rate	1.00 V/μs
Gain Bandwidth Product	0.1 MHz
Input Offset Voltage	5 mV
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
3dB Bandwidth	100 kHz
Gain Bandwidth	100 kHz
Minimum CMRR Range	70 dB
Supply Voltage (Max)	36 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	4.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
