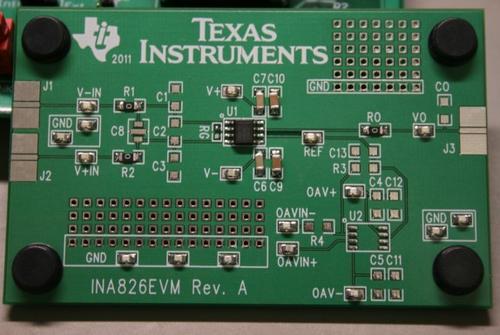

INA826EVM - TI
Manufacturer:
TI
ManyChip's Part#:
MC4834958
Category:
Microprocessor Development Kit
Datasheet:
Datasheet 3D Model
Description:
KIT FOR 200A SUPPLY CURRENT, 2.7V TO 36V SUPPLYINSTRUMENTATION AMPLIFIER WITH RAIL-TO-RAIL OUTPUT
Stock Locations:
Availability:
724 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 31.62

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The INA826EVM 4 is an evaluation module for evaluating the INA826 instrumentation amplifier. The INA826 is a low power, wide supply voltage instrumentation amplifier that can operate in both single and dual supply configurations. A single external resistor sets the gain from 1 to 1000. The input voltage range extends from the negative power supply to 1V below the positive power supply. The rail to rail output allows for use in low voltage applications. The device operates with a supply voltage between 2.7V and 36 V and draws a maximum quiescent current of 250µA. The device is available in MSOP-8, SO-8, and DFN-8 packages.
Intuitive evaluation with the silkscreen schematic
Easy access to nodes with surface mount test points
Advanced evaluation with two prototype areas
Reference voltage source flexibility
Convenient input and output filtering
It is important to operate this EVM within the input voltage range of -18V to 17V and the output voltage range of -14V to 14V. Exceeding the specified input range may cause damage to the EVM.
