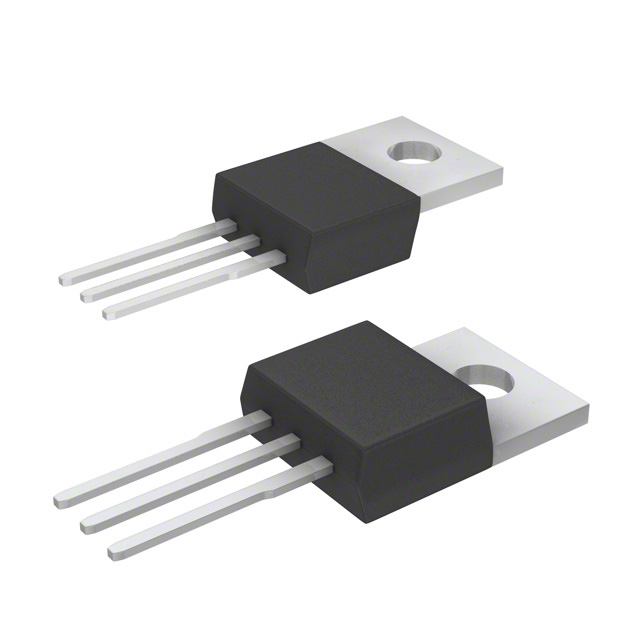

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Reduced gate charge (Q g)
- Higher V th
- Good body diode ruggedness
- Optimized integrated R g
- Improved dv/dt from 50V/ns
- CoolMOS™ quality with over 12 years manufacturing experience in superjunction technology
- Benefits:
- Improved effciency especially in light load condition
- Better efficiency in soft switching applications due to earlier turn-off
- Suitable for hard- & soft-switching topologies
- Optimized balance of efficiency and ease of use and good controllability of switching behavior
- High robustness and better efficiency
- Outstanding quality & reliability
IPA60R160P6 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Number of Contacts | 30 Contact |
| Polarity | N-CH |
| Power Dissipation | 34 W |
| Drain to Source Voltage (Vds) | 600 V |
| Continuous Drain Current (Ids) | 23.8A |
| Rise Time | 7.6 ns |
| Current Rating (Max) | 4.9A/触头 |
| Input Capacitance (Ciss) | 2080pF @100V(Vds) |
| Fall Time | 5.8 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 34000 mW |
| Show | |
| Size-Length | 10.65 mm |
| Size-Width | 4.85 mm |
| Size-Height | 16.15 mm |
| Housing Color | Black |
| Contact Material | Phosphor Bronze |
| Operating Temperature | -55℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
