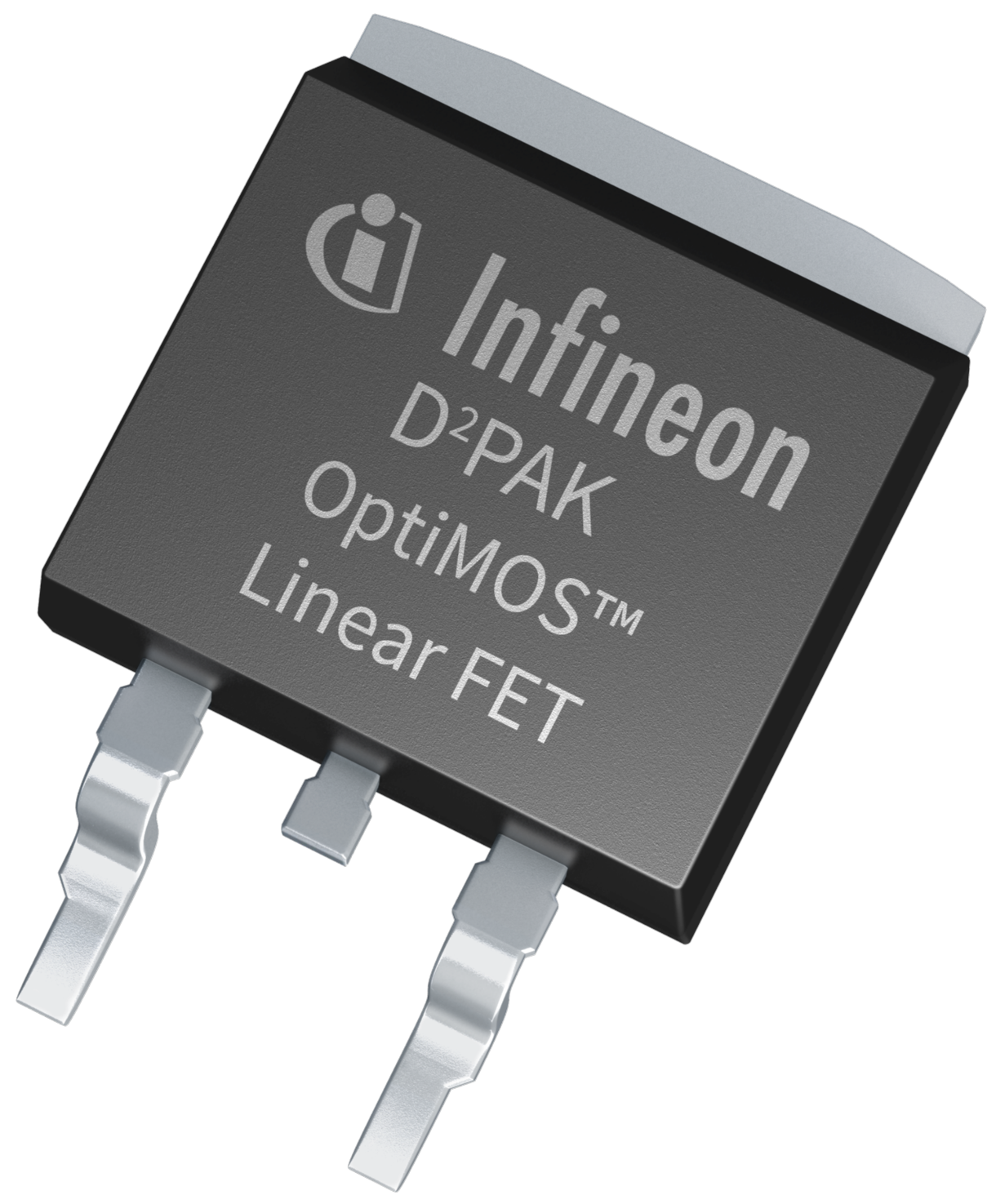

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description:
OptiMOS™ Linear FET is a revolutionary approach to avoid the trade-off between on-state resistance (R DS(on)) and linear mode capability – operation in the saturation region of an enhanced mode MOSFET. It offers the state-of-the-art R DS(on) of a trench MOSFET together with the wide safe operating area of a classic planar MOSFET.
Summary of Features:
Combination of low R DS(on) and wide safe operating area (SOA)
High max. pulse current
High continuous pulse current
Benefits:
Rugged linear mode operation
Low conduction losses
Higher in-rush current enabled for faster start-up and shorter down time

Show

IPB020N10N5LFATMA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	3 Pin
Case/Package	TO-263-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.0018 Ω
Power Dissipation	313 W
Threshold Voltage	3.3 V
Drain to Source Voltage (Vds)	100 V
Rise Time	28 ns
Input Capacitance (Ciss)	650pF @50V(Vds)
Fall Time	82 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	313000 mW
	Show
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
