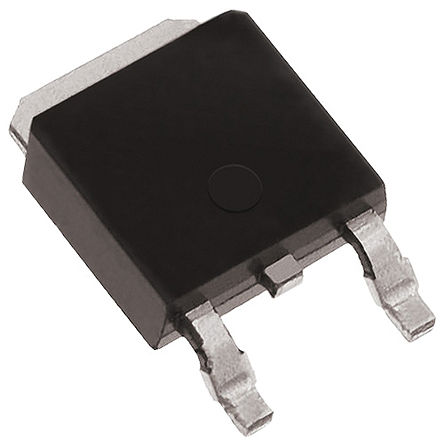

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IPD350N06L G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Voltage Rating (DC)	60.0 V
Current Rating	29.0 A
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	35 mΩ
Power Dissipation	68 W
Input Capacitance	800 pF
Gate Charge	13.0 nC
Drain to Source Voltage (Vds)	60 V
Breakdown Voltage (Drain to Source)	60 V
Continuous Drain Current (Ids)	29.0 A
Rise Time	21 ns
Input Capacitance (Ciss)	600pF @30V(Vds)
Input Power (Max)	68 W
Fall Time	20 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	68 W
	Show
Size-Length	6.5 mm
Size-Width	6.22 mm
Size-Height	2.3 mm
Operating Temperature	-55℃ ~ 175℃
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
