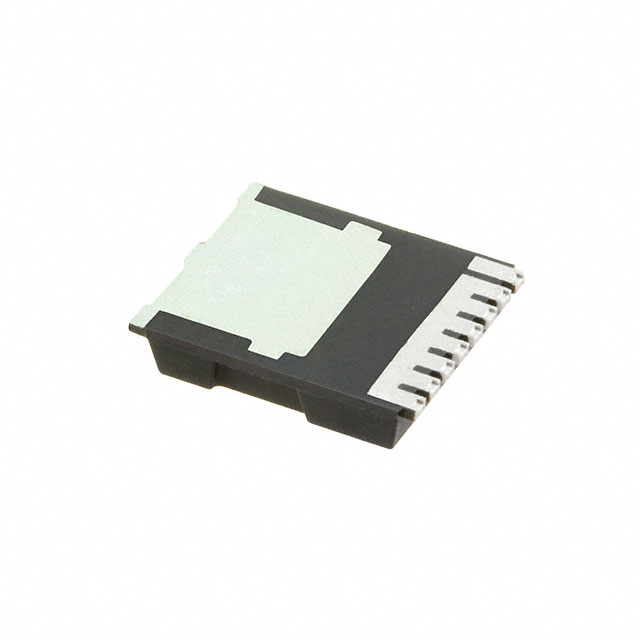

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- V BRDSS= 40V
- R DSon (max) = 0.77mOhm
- I D= 300A
- R thJC= 0.35K/W
- Package Footprint Area = 115mm²
- AOI (Automatic Optical Inspection) capability included
- 100% lead-free
- TOLL Package = JEDEC registered
IPLU300N04S4R8XTMA1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | H-PSOF-8-1 |
| Number of Positions | 8 Position |
| Polarity | N-CH |
| Power Dissipation | 429 W |
| Threshold Voltage | 3 V |
| Drain to Source Voltage (Vds) | 40 V |
| Continuous Drain Current (Ids) | 300A |
| Rise Time | 22 ns |
| Input Capacitance (Ciss) | 22945pF @25V(Vds) |
| Fall Time | 61 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 429W (Tc) |
| Show | |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
