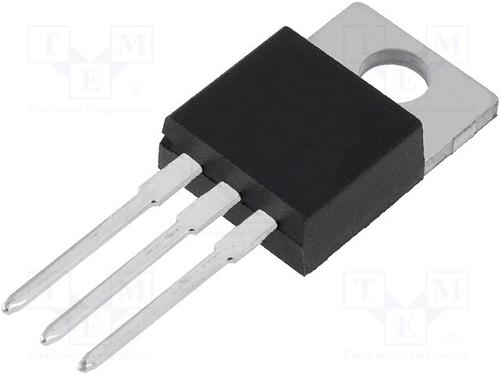

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Optimized for synchronous rectification
- Ideal for high switching frequency
- Output capacitance reduction of up to 44%
- R DS(on) reduction of up to 43% from previous generation
- Benefits:
- Highest system efficiency
- Reduced switching and conduction losses
- Less paralleling required
- Increased power density
- Low voltage overshoot
- Target Applications:
- Telecom
- Server
- Solar
- Low voltage drives
- Light electric vehicles
- Adapter
IPP083N10N5AKSA1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Power Rating | 100 W |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 0.0073 Ω |
| Polarity | N-CH |
| Power Dissipation | 100 W |
| Threshold Voltage | 3 V |
| Drain to Source Voltage (Vds) | 100 V |
| Continuous Drain Current (Ids) | 73A |
| Rise Time | 5 ns |
| Input Capacitance (Ciss) | 2730pF @50V(Vds) |
| Fall Time | 5 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 100W (Tc) |
| Show | |
| Size-Length | 10 mm |
| Size-Width | 4.4 mm |
| Size-Height | 15.65 mm |
| Operating Temperature | -55℃ ~ 175℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
