Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Through Hole |
Number of Pins | 3 Pin |

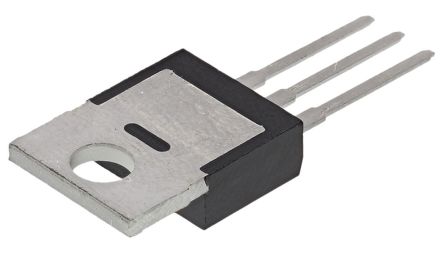

Case/Package | TO-220-3 |
Power Rating | 136 W |
Number of Channels | 1 Channel |
Number of Positions | 3 Position |
Drain to Source Resistance (on) (Rds) | 0.028 Ω |
Polarity | N-Channel |
Power Dissipation | 136 W |
Threshold Voltage | 3 V |
Drain to Source Voltage (Vds) | 200 V |
Breakdown Voltage (Drain to Source) | 200 V |
Continuous Drain Current (Ids) | 34A |
Rise Time | 9 ns |
Input Capacitance (Ciss) | 1770pF @100V(Vds) |
Fall Time | 4 ns |
Operating Temperature (Max) | 175 ℃ |
Operating Temperature (Min) | -55 ℃ |
Power Dissipation (Max) | 136 W |
Show | |
Size-Length | 10 mm |
Size-Width | 4.4 mm |
Size-Height | 15.65 mm |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/12/17 |
