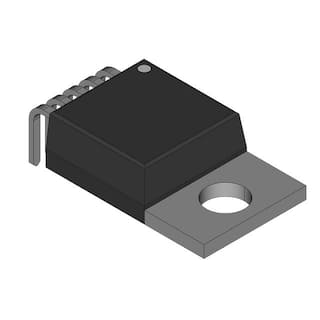

Image is for your reference only,please check specifications for details

IPS511 - International Rectifier
Manufacturer:
International Rectifier
ManyChip's Part#:
MC300263392
Category:
FET Driver
Package:
TO-220-5
Datasheet:
Datasheet 3D Model
Description:
IPS511 Series 35V 135mOhm Fully Protected High Side Power Mosfet Switch-TO-220-5
Stock Locations:
Availability:
293 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The IPS511/IPS511S are fully protected five terminal high side switches with built in short circuit, over-temperature, ESD protection, inductive load capability and diagnostic feedback. The output current is controlled when it reaches Ilim value. The current limitation is activated until the thermal protection acts. The over-temperature protection turns off the high side switch if the junction temperature exceeds Tshutdown. It will automatically restart after the junction has cooled 7oC below Tshutdown. A diagnostic pin is provided for status feedback of short-circuit, over-temperature and open load detection. The double level shifter circuitry allows large offsets between the logic ground and the load ground.
Features
• Over temperature protection (with auto-restart)
• Short-circuit protection (current limit )
• Active clamp
• E.S.D protection
• Status feedback
• Open load detection
• Logic ground isolated from power ground

Show

IPS511 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	TO-220-5
Supply Voltage (DC)	35.0V (max)
Number of Outputs	1 Output
Supply Current	0.7 mA
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	130 mΩ
Power Dissipation	25000 mW
Part Family	IPS511
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	25000 mW
Supply Voltage	5.5V ~ 35V
	Show
Size-Height	9.27 mm
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
