- Summary of Features:
- Industry‘s lowest R DS(on)
- Highest current capability up to 300A
- Very low package parasitics and inductances
- Benefits:
- Less paralleling and cooling required
- Highest system reliability
- System cost reduction
- Enabling very compact design

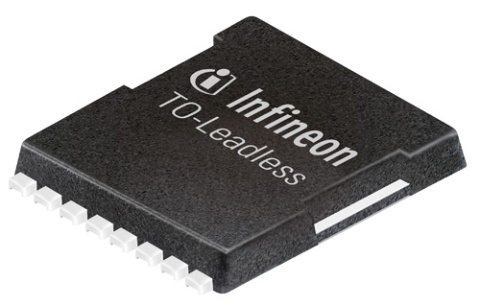

IPT111N20NFDATMA1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 9 Pin |
| Case/Package | PG-HSOF-8 |
| Number of Positions | 8 Position |
| Drain to Source Resistance (on) (Rds) | 0.009 Ω |
| Polarity | N-CH |
| Power Dissipation | 375 W |
| Threshold Voltage | 3 V |
| Drain to Source Voltage (Vds) | 200 V |
| Continuous Drain Current (Ids) | 96A |
| Rise Time | 11 ns |
| Input Capacitance (Ciss) | 5300pF @100V(Vds) |
| Fall Time | 13 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 375000 mW |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
