Description

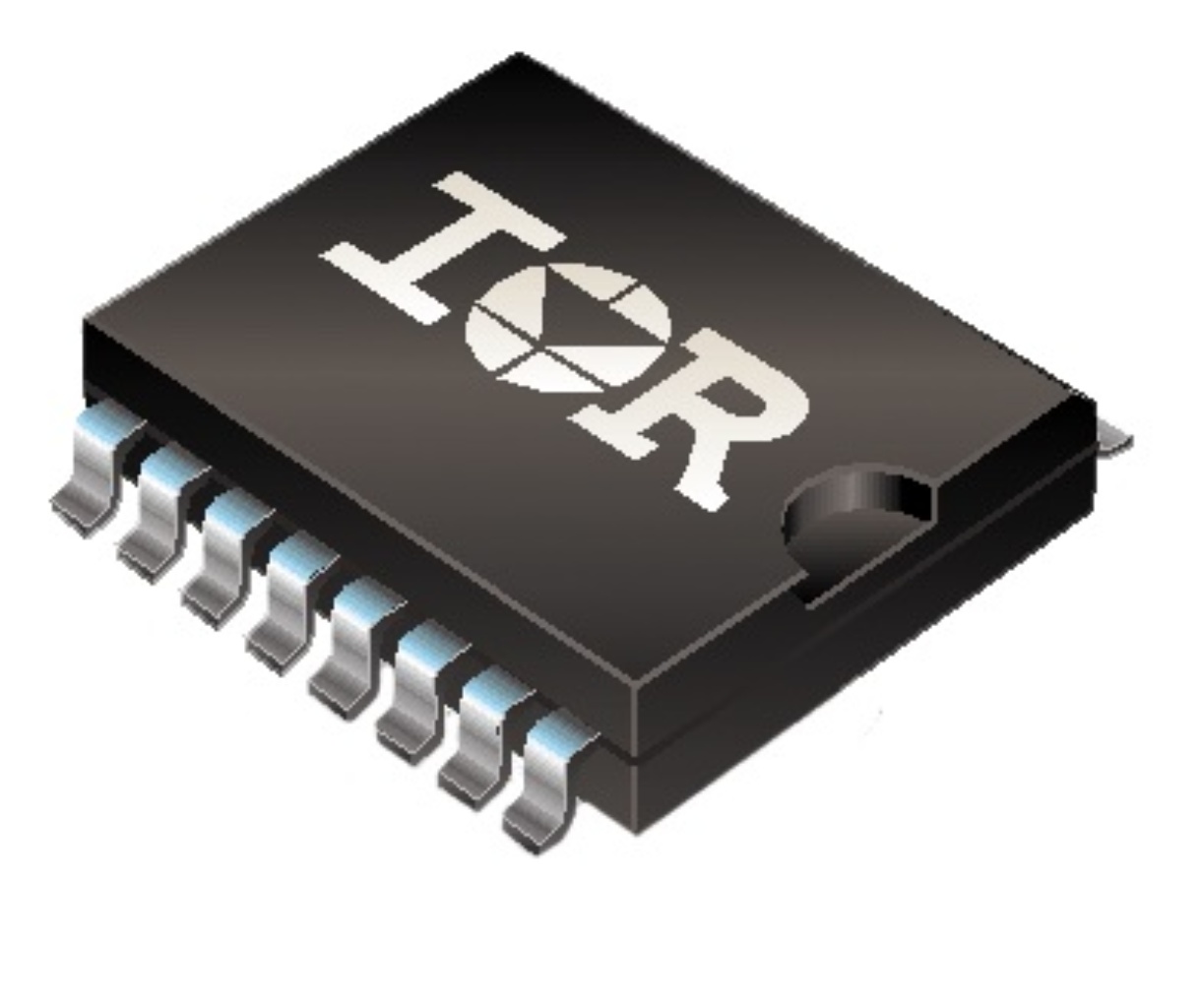

The IR2010SPBF is a high power high voltage high speed power MOSFET and IGBT Driver with independent high and low-side referenced output channels. Logic inputs are compatible with standard CMOS or LSTTL output, down to 3V logic. The output driver features a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high frequency applications. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates up to 200V. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction.
Floating channel designed for bootstrap operation
Tolerant to negative transient voltage (dV/dt immune)
Under-voltage lockout for both channels
3.3V Logic compatible
Logic and power ground ±5V offset
CMOS Schmitt-triggered inputs with pull-down
Shut down input turns OFF both channels
Cross-conduction prevention logic
Matched propagation delay for both channels
Outputs in phase with inputs

Show

IR2010SPBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Operating Voltage	10V ~ 20V
Rise/Fall Time	10ns, 15ns
Number of Outputs	2 Output
Output Voltage	220 V
Output Current	3 A
Number of Channels	2 Channel
Number of Positions	16 Position
Power Dissipation	1250 mW
Quiescent Current	100 µA
Rise Time	10 ns
Fall Time	15 ns
Fall Time (Max)	25 ns
Fall Time (Max)	20 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1250 mW
Supply Voltage	10V ~ 20V
Supply Voltage (Max)	20 V
Supply Voltage (Min)	10 V
	Show
Size-Length	10.5 mm
Size-Width	7.6 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
