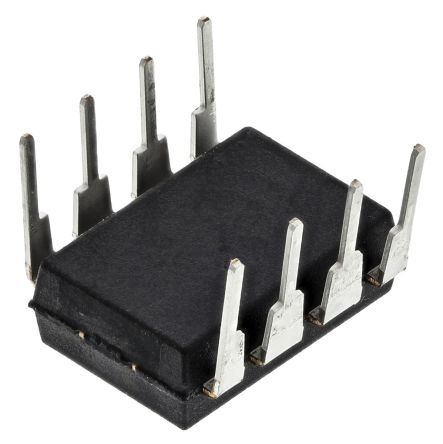

IR2161PBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Frequency	34kHz ~ 70kHz
Number of Outputs	2 Output
Output Voltage	625.3 V
Output Current	500 mA
Supply Current	10 mA
Number of Channels	2 Channel
Number of Positions	8 Position
Power Dissipation	1000 mW
Fall Time (Max)	140 ns
Fall Time (Max)	250 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1000 mW
Operating Voltage (Min)	11.5 V
Operating Voltage (Max)	16.5 V
Supply Voltage	11.5V ~ 16.5V
Supply Voltage (Max)	16.5 V
Supply Voltage (Min)	11.5 V
	Show
Operating Temperature	-25℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
