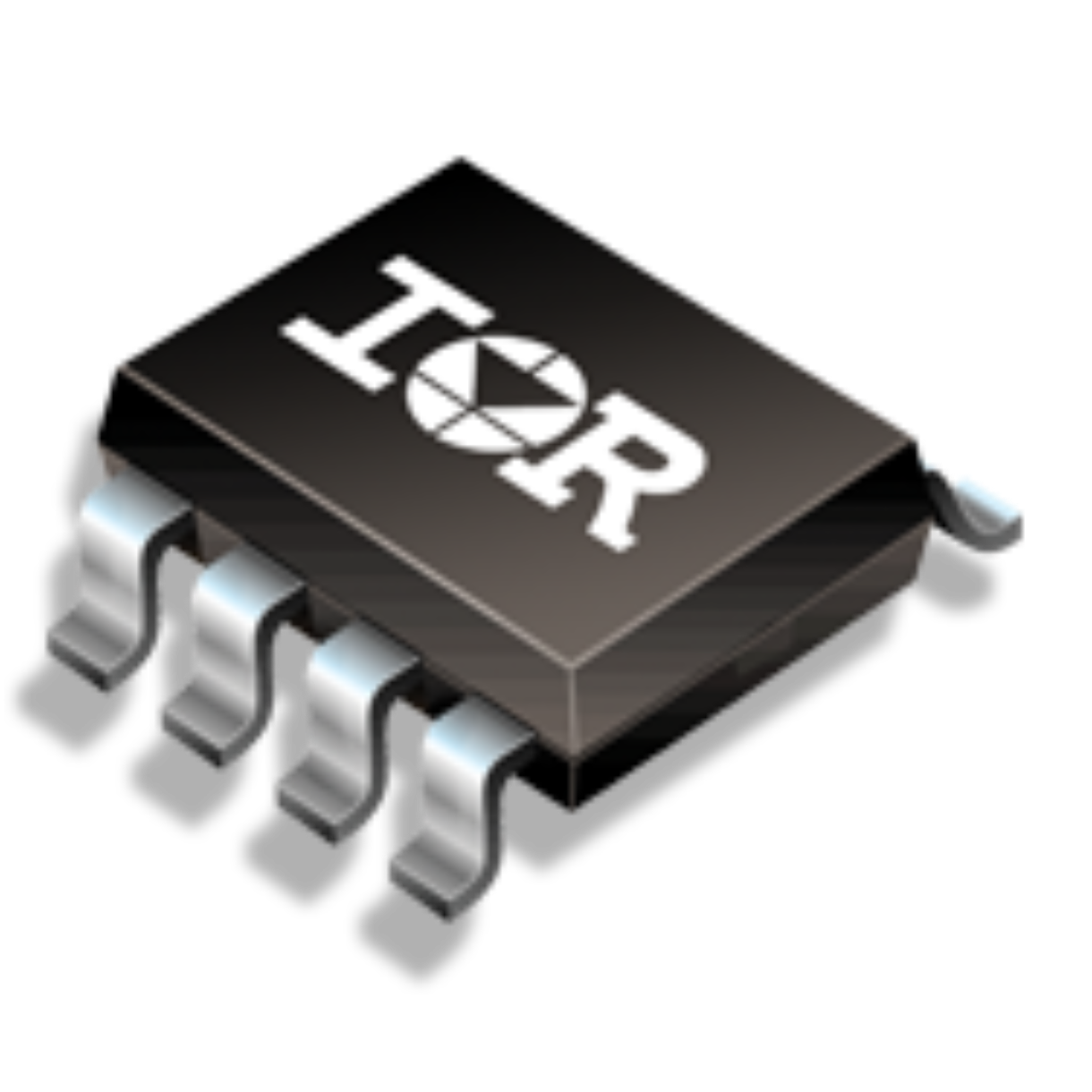

Image is for your reference only,please check specifications for details

IR4427SPBF - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC3302044
Category:
FET Driver
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
Infineon IR4427SPBF, Dual MOSFET Power Driver, 3.3A, 6 → 20V, Non-Inverting, 8Pin SOIC
Stock Locations:
Availability:
297 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.75

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Summary of Features:
Gate drive supply range from 6 to 20 V
CMOS Schmitt-triggered inputs
Matched propagation delay for both channels
Outputs in phase with inputs (IR4427)
Outputs out of phase with inputs (IR4426 Output OUTA out of phase with input and OUTB in phase with input (IR4428

Show

IR4427SPBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Operating Voltage	6V ~ 20V
Power Rating	625 mW
Rise/Fall Time	15ns, 10ns
Number of Outputs	2 Output
Output Voltage	20 V
Output Current	2.3 A
Supply Current	1500 μA
Number of Channels	2 Channel
Power Dissipation	0.625 W
Rise Time	35ns (Max)
Thermal Resistance	200℃/W (RθJA)
Fall Time	25ns (Max)
Fall Time (Max)	25 ns
Fall Time (Max)	35 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	625 mW
Supply Voltage	6V ~ 20V
Supply Voltage (Max)	20 V
Supply Voltage (Min)	6 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
