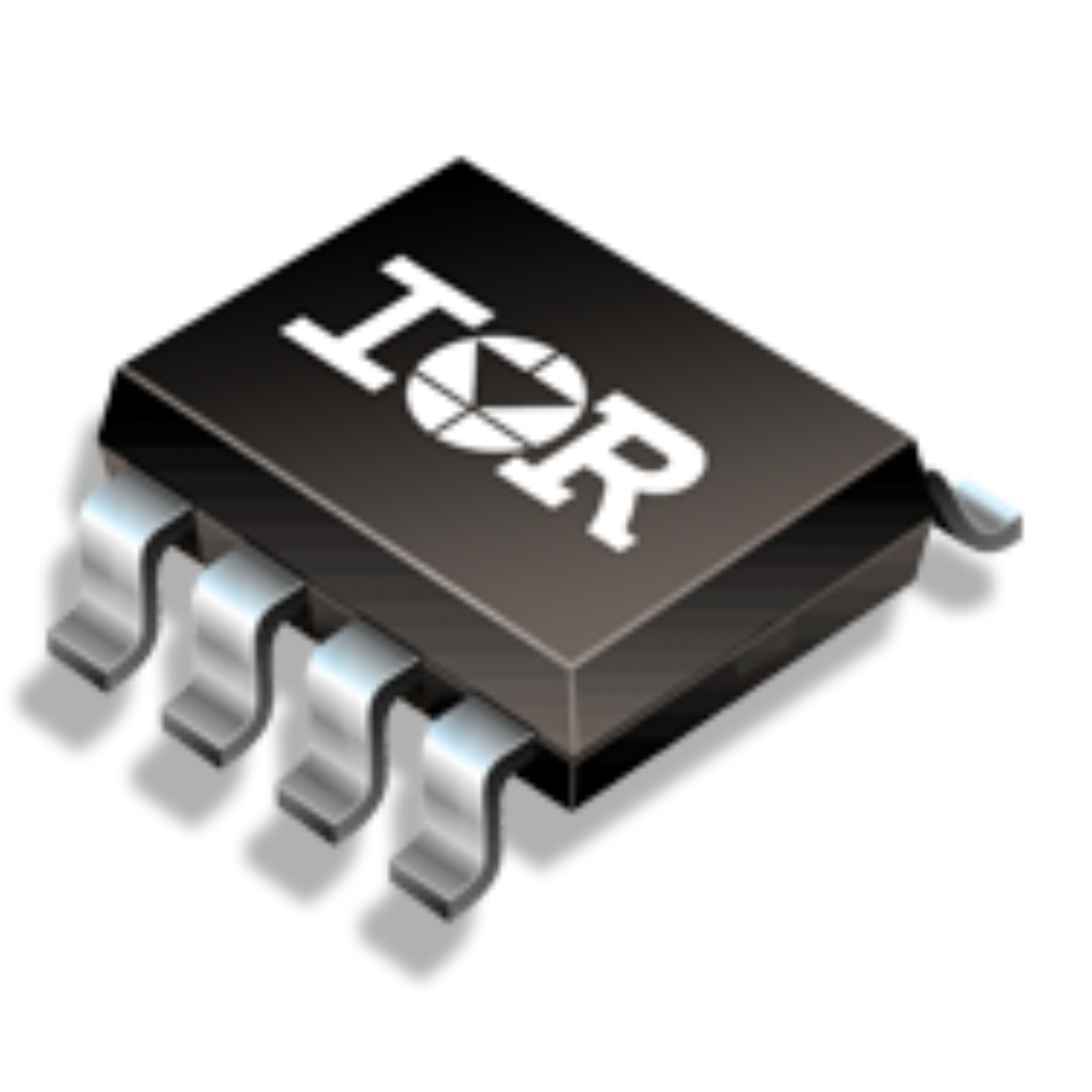

Image is for your reference only,please check specifications for details
- IR4427STRPBF - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC708040
-
Category:FET Driver
-
Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:Infineon IR4427STRPBF, Dual MOSFET Power Driver, 3.3A, 6 → 20V, 8Pin SOIC
-
Stock Locations:
-
Availability:1,223 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.7
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Gate drive supply range from 6 to 20 V
- CMOS Schmitt-triggered inputs
- Matched propagation delay for both channels
- Outputs in phase with inputs (IR4427)
- Outputs out of phase with inputs (IR4426 Output OUTA out of phase with input and OUTB in phase with input (IR4428
IR4427STRPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Rise/Fall Time | 15ns, 10ns |
| Number of Outputs | 2 Output |
| Output Voltage | 6.20 V |
| Output Current | 2.3 A |
| Number of Channels | 2 Channel |
| Number of Positions | 8 Position |
| Power Dissipation | 625 mW |
| Rise Time | 35 ns |
| Fall Time | 25 ns |
| Fall Time (Max) | 25 ns |
| Fall Time (Max) | 35 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 625 mW |
| Supply Voltage | 6V ~ 20V |
| Supply Voltage (Max) | 20 V |
| Supply Voltage (Min) | 6 V |
| Show | |
| Size-Length | 4.98 mm |
| Size-Width | 3.99 mm |
| Size-Height | 1.5 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
