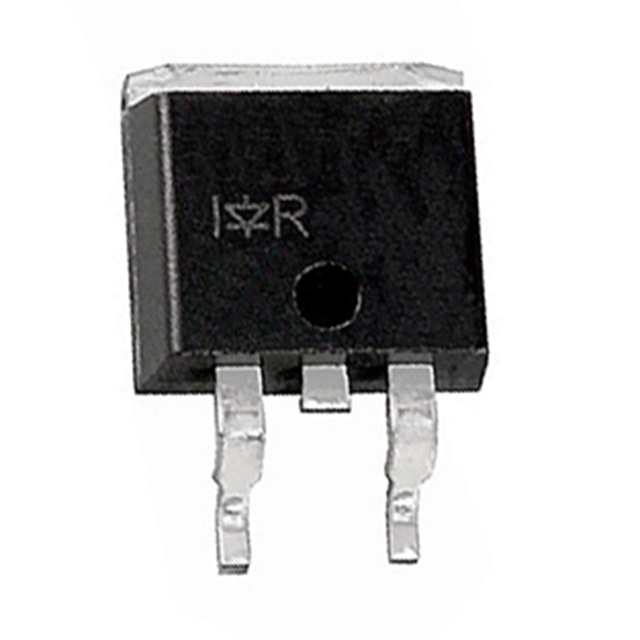

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IRF2804S Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263
Voltage Rating (DC)	40.0 V
Current Rating	75.0 A
Power Dissipation	330 W
Part Family	IRF2804S
Drain to Source Voltage (Vds)	40 V
Breakdown Voltage (Drain to Source)	40.0V (min)
Continuous Drain Current (Ids)	75.0 A
Rise Time	120 ns
Input Capacitance (Ciss)	6450pF @25V(Vds)
Input Power (Max)	330 W
	Show
Product Lifecycle Status	Obsolete
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
