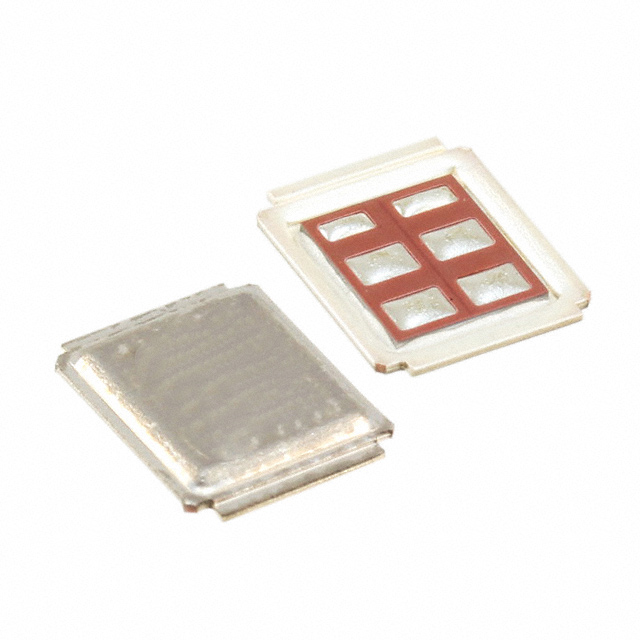

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Benefits:
- RoHS Compliant
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche SOA
- Enhanced body diode dV/dt and dI/dt Capability
IRF7580MTRPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | Direct-FET |
| Power Rating | 115 W |
| Number of Positions | 8 Position |
| Drain to Source Resistance (on) (Rds) | 0.0029 Ω |
| Polarity | N-Channel |
| Power Dissipation | 96 W |
| Threshold Voltage | 3.7 V |
| Drain to Source Voltage (Vds) | 60 V |
| Continuous Drain Current (Ids) | 114A |
| Rise Time | 38 ns |
| Input Capacitance (Ciss) | 6510pF @25V(Vds) |
| Fall Time | 21 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 115W (Tc) |
| Show | |
| Size-Length | 6.35 mm |
| Size-Width | 5.05 mm |
| Size-Height | 0.7 mm |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
