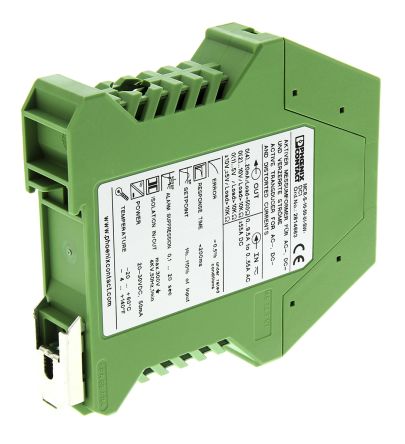

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- MCR Current Measuring Transducer, 20 to 30 VDC Supply Voltage
- * Polyamide PA non-reinforced housing
- * Green color
- MCR current measuring transducer, programmable and configurable, for measuring direct, alternating and distorted currents, with relay and transistor output, input.
2814744 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw |
| Case/Package | Module |
| Frequency | 15Hz ~ 400Hz |
| Current Rating | 55 A |
| Number of Channels | 1 Channel |
| Input Current | 0A ~ 11A |
| Output Voltage (Max) | 10 V |
| Operating Temperature (Max) | 60 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Accuracy | ±0.5 % |
| Voltage Rating | 20 V |
| Supply Voltage | 20VDC ~ 30VDC |
| Show | |
| Size-Length | 3.9 in |
| Size-Width | 22.5 mm |
| Size-Height | 4.5 in |
| Color | Green |
| Operating Temperature | -20℃ ~ 60℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8543704000 |
| ECCN Code | EAR99 |
