Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Through Hole |
Number of Pins | 3 Pin |

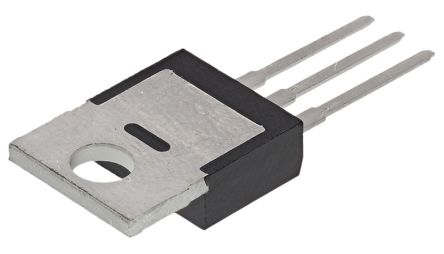

Case/Package | TO-220-3 |
Number of Positions | 3 Position |
Drain to Source Resistance (on) (Rds) | 2.2 Ω |
Polarity | N-Channel |
Power Dissipation | 74 W |
Threshold Voltage | 4.5 V |
Drain to Source Voltage (Vds) | 600 V |
Continuous Drain Current (Ids) | 3.60 A |
Input Capacitance (Ciss) | 510pF @25V(Vds) |
Input Power (Max) | 74 W |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | -55 ℃ |
Power Dissipation (Max) | 74 W |
Show | |
Size-Length | 10.41 mm |
Size-Width | 4.7 mm |
Size-Height | 9.01 mm |
Operating Temperature | -55℃ ~ 150℃ (TJ) |
Product Lifecycle Status | Active |
Packaging | Tube |
Minimum Packing Quantity | 50 |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
