Description

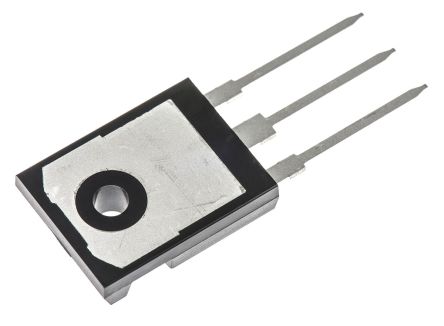

- Single N-Channel 60 V 0.014 Ohms Flange Mount Power Mosfet - TO-247
IRFP054PBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-247-3 |
| Voltage Rating (DC) | 60.0 V |
| Current Rating | 70.0 A |
| Power Rating | 230 W |
| Drain to Source Resistance (on) (Rds) | 14.0 Ω |
| Polarity | N-Channel |
| Power Dissipation | 230 W |
| Drain to Source Voltage (Vds) | 60 V |
| Breakdown Voltage (Drain to Source) | 60.0 V |
| Breakdown Voltage (Gate to Source) | ±20.0 V |
| Continuous Drain Current (Ids) | 70.0 A |
| Rise Time | 160 ns |
| Input Capacitance (Ciss) | 4500pF @25V(Vds) |
| Input Power (Max) | 230 W |
| Fall Time | 150 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 230 W |
| Show | |
| Size-Length | 15.87 mm |
| Size-Width | 5.31 mm |
| Size-Height | 20.82 mm |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| Minimum Packing Quantity | 500 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
