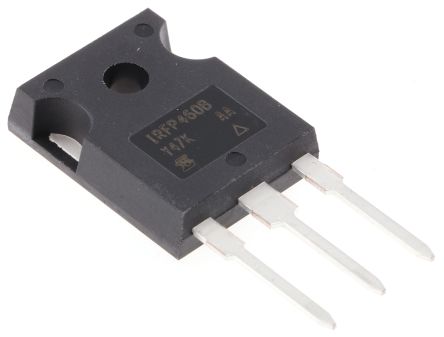

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IRFP460BPBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.2 Ω
Polarity	N-Channel
Power Dissipation	278 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	500 V
Continuous Drain Current (Ids)	20A
Input Capacitance (Ciss)	3094pF @10V(Vds)
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	278W (Tc)
	Show
Size-Length	15.87 mm
Size-Width	5.31 mm
Size-Height	20.82 mm
Packaging	Bulk
Minimum Packing Quantity	500
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
