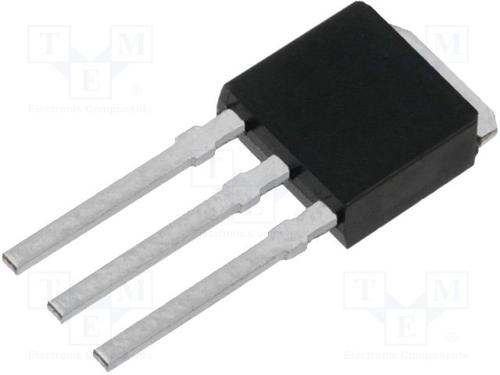

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Single N-Channel 400 V 1.8 Ohms Through Hole Power Mosfet - IPAK (TO-251)
IRFU320PBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-251-3 |
| Voltage Rating (DC) | 400 V |
| Current Rating | 3.10 A |
| Power Rating | 42 W |
| Drain to Source Resistance (on) (Rds) | 1.8 Ω |
| Polarity | N-Channel |
| Power Dissipation | 2.5 W |
| Drain to Source Voltage (Vds) | 400 V |
| Breakdown Voltage (Drain to Source) | 400 V |
| Continuous Drain Current (Ids) | 3.10 A |
| Rise Time | 14 ns |
| Input Capacitance (Ciss) | 350pF @25V(Vds) |
| Input Power (Max) | 2.5 W |
| Fall Time | 13 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 2500 mW |
| Show | |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| Minimum Packing Quantity | 3000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HK STC License | NLR |
