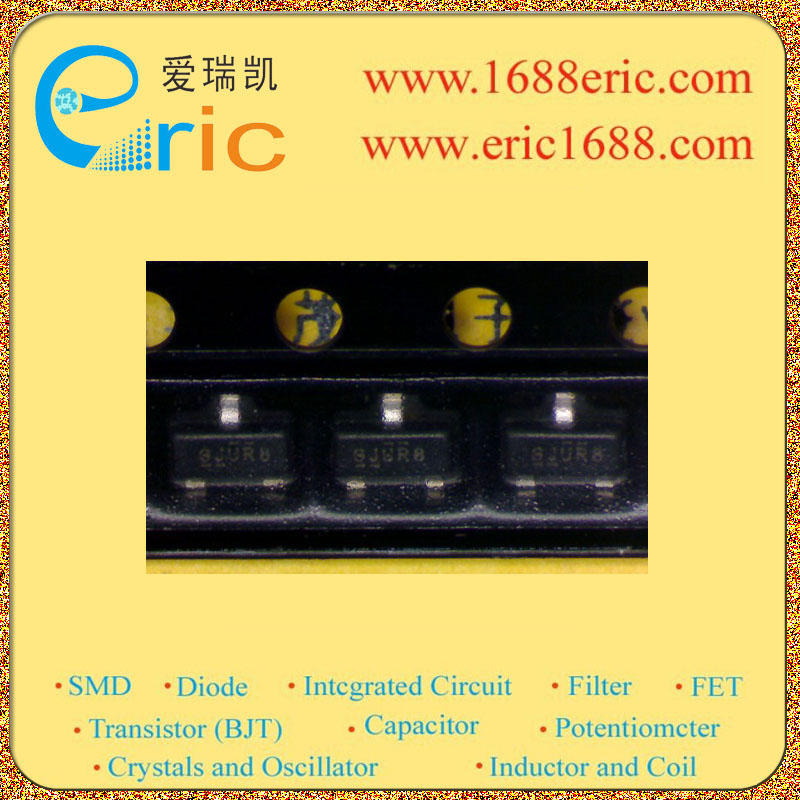

Image is for your reference only,please check specifications for details

Updated at 04/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
These N-Channel MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in battery and load management.
• Ultra Low On-Resistance
• N-Channel MOSFET
• SOT-23 Footprint
• Low Profile (<1.1mm)
• Available in Tape and Reel
• Fast Switching

Show

IRLML2502TR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SOT-23
Voltage Rating (DC)	20.0 V
Current Rating	4.20 A
Part Family	IRLML2502
Drain to Source Voltage (Vds)	20.0 V
Continuous Drain Current (Ids)	4.20 A
Rise Time	10.0 ns
	Show
Product Lifecycle Status	End of Life
Packaging	Cut Tape (CT)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
