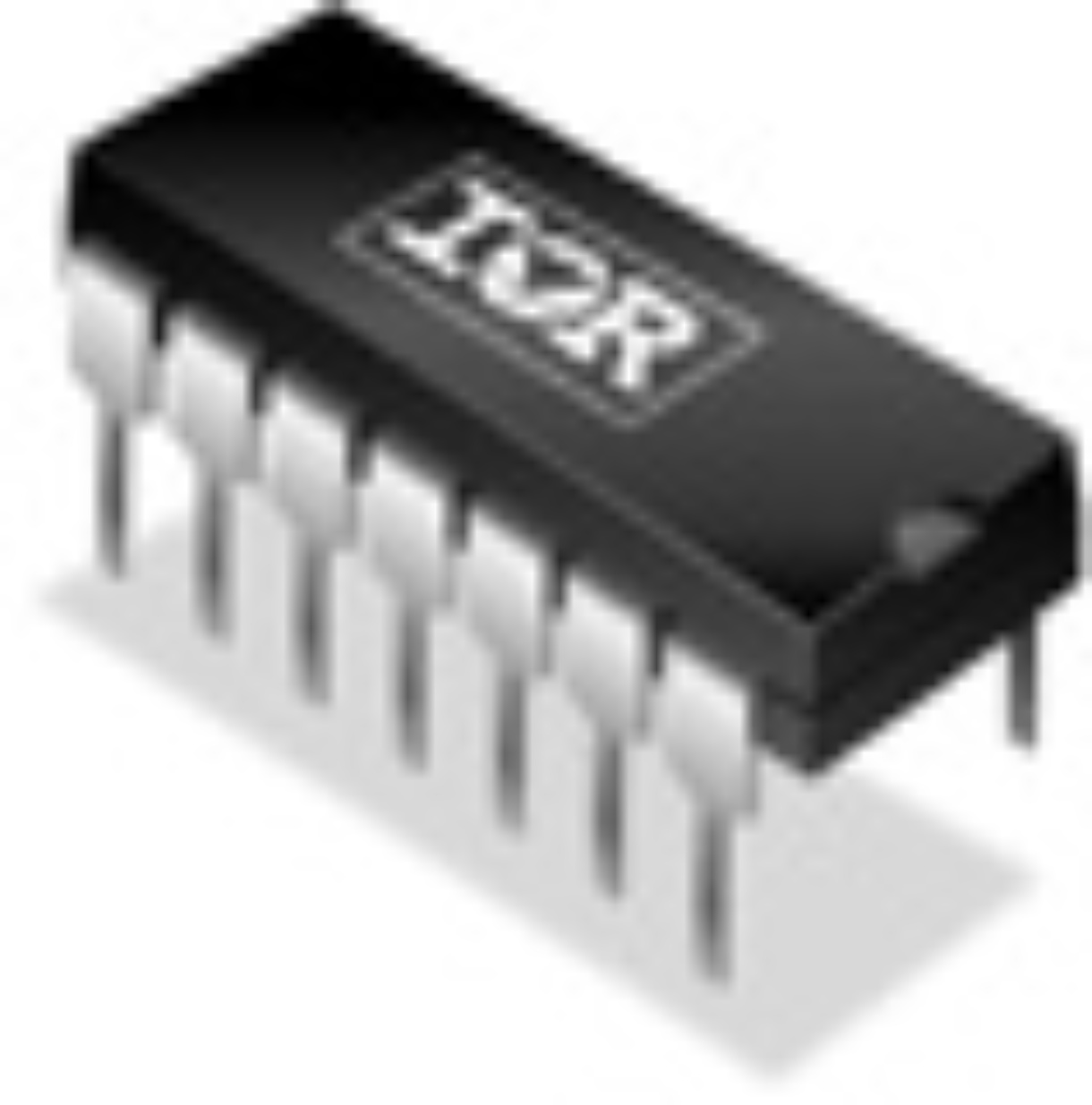

Image is for your reference only,please check specifications for details

IRS21844PBF - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC12011082
Category:
FET Driver
Package:
PDIP-14
Datasheet:
Datasheet 3D Model
Description:
600V Half Bridge Driver IC with typical 1.9A source and 2.3A sink currents in 14 Lead PDIP package for IGBTs and MOSFETs. Also available in 14 Lead SOIC, 14 Lead MLPQ 4x4, 8 Lead SOIC, and 8 Lead PDIP.
Stock Locations:
Availability:
14 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.98

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The IRS21844PBF is a high voltage high speed power MOSFET and IGBT Half-Bridge Driver with dependent high- and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates up to 600V.
Floating channel designed for bootstrap operation
Tolerant to negative transient voltage (dV/dt immune)
Under-voltage lockout for both channels
3.3 and 5V Input logic compatible
Matched propagation delay for both channels
Logic and power ground ±5V offset
Lower di/dt gate driver for better noise immunity

Show

IRS21844PBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	PDIP-14
Supply Voltage (DC)	10.0V (min)
Power Rating	1.6 W
Rise/Fall Time	40ns, 20ns
Number of Outputs	2 Output
Output Voltage	600 V
Output Current	1.9.2.3 A
Number of Channels	2 Channel
Number of Positions	14 Position
Power Dissipation	1600 mW
Fall Time (Max)	35 ns
Fall Time (Max)	60 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1600 mW
Supply Voltage	10V ~ 20V
Supply Voltage (Max)	20 V
Supply Voltage (Min)	10 V
	Show
Size-Length	20.19 mm
Size-Width	7.11 mm
Size-Height	5.4 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
