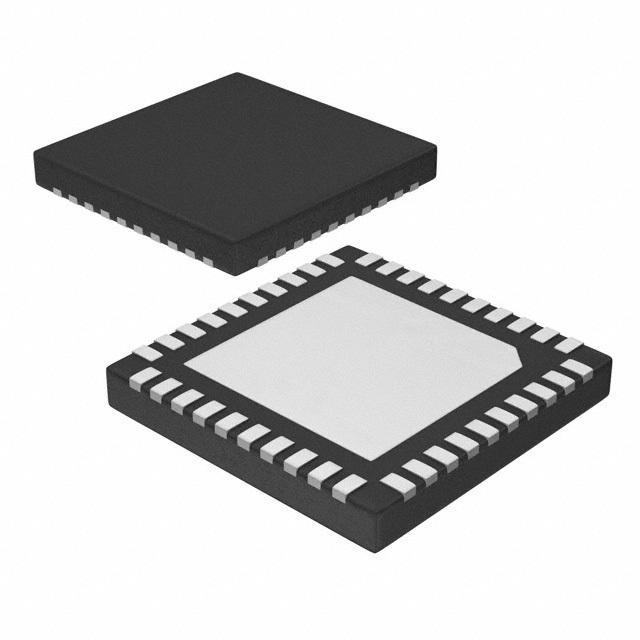

Image is for your reference only,please check specifications for details

ISL6264CRZ - Intersil
Manufacturer:
Intersil
ManyChip's Part#:
MC31656529
Category:
Voltage Regulator
Package:
QFN-40
Datasheet:
Datasheet 3D Model
Description:
Soft Sw PWM Cntrlr 2Out PWM Controller 5V 285kHz to 315kHz 40Pin QFN EP
Stock Locations:
Availability:
11 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.88

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ISL6264 is a two-phase buck converter regulator with embedded gate drivers. The two-phase buck converter uses two interleaved channels to effectively double the output voltage ripple frequency and thereby reduce output voltage ripple amplitude with fewer components, lower component cost, reduced power dissipation, and smaller real estate area. ISL6264 can also be configured as single-phase controller for low power CPU applications.
Features
• Precision Two-phase Core Voltage Regulator
\- 0.5% system accuracy over temperature
• Voltage positioning with Adjustable Load Line and Offset
• Internal Gate Driver with 2A Driving Capability
• Dynamic Phase Adding/Dropping
• Differential Current Sensing: DCR or resistor
• Microprocessor Voltage Identification Input
\- 6-Bit VID Input
\- 0.775V to 1.55V in 12.5mV Steps
\- 0.375V to 0.7625V in 25mV Steps
• Adjustable Reference-Voltage Offset
• Audio Filter Enable/Disable
• User Programmable Switching Frequency
• Differential Remote CPU Die Voltage Sensing
• Static and Dynamic Current Sharing
• Overvoltage, Undervoltage, and Overcurrent Protection
