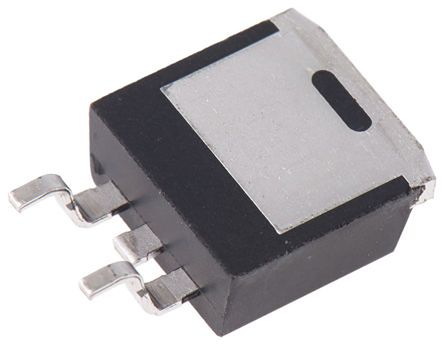

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ISL9R1560S3ST is a STEALTH™ Diode optimized for low loss performance in high frequency hard switched applications. The STEALTH™ family exhibits low reverse recovery current (Irr) and exceptionally soft recovery under typical operating conditions. This device is intended for use as a free-wheeling or boost diode in power supplies and other power switching applications. The low Irr and short ta phase reduce loss in switching transistors. The soft recovery minimizes ringing, expanding the range of conditions under which the diode may be operated without the use of additional snubber circuitry. Consider using the STEALTH™ diode with an SMPS IGBT to provide the most efficient and highest power density design.
Avalanche energy rated
High reliability
29.4ns at IF = 15A Stealth recovery (trr)

Show

ISL9R1560S3ST Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Forward Voltage	2.2 V
Thermal Resistance	1℃/W (RθJC)
Reverse recovery time	40 ns
Forward Current	15000 mA
Max Forward Surge Current (Ifsm)	200 A
Maximum Forward Voltage (Max)	2.2 V
Forward Current (Max)	15 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	150000 mW
	Show
Size-Length	10.67 mm
Size-Width	9.65 mm
Size-Height	4.83 mm
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
