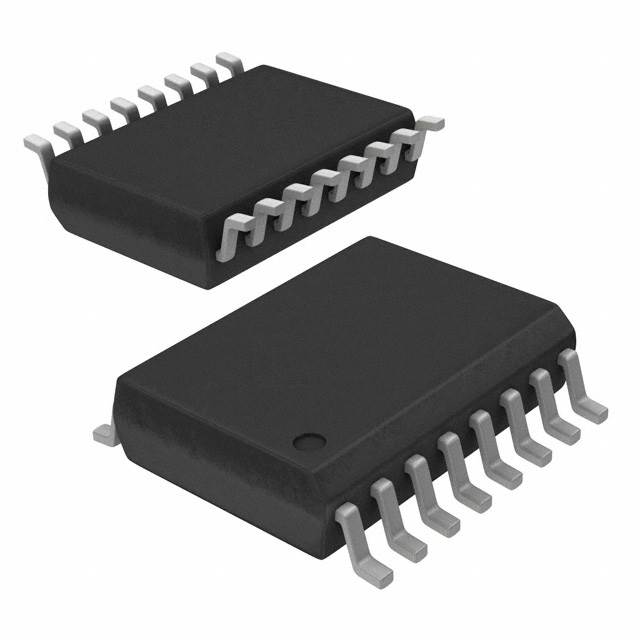

Image is for your reference only,please check specifications for details
- ISO5852SQDWRQ1 - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC6627704
-
Package:SOIC-16
-
Datasheet:Datasheet 3D Model
-
Description:High-CMTI 2.5A/5A Isolated IGBT, MOSFET Gate Driver With Split Outputs and Protection Features 16-SOIC -40℃ to 125℃
-
Stock Locations:
-
Availability:200 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.03
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ISO5852S-Q1 device is a 5.7-kVRMS, reinforced isolated gate driver for IGBTs and MOSFETs with split outputs, OUTH and OUTL, providing 2.5-A source and 5-A sink current. The input side operates from a single 2.25-V to 5.5-V supply. The output side allows for a supply range from minimum 15 V to maximum 30 V. Two complementary CMOS inputs control the output state of the gate driver. The short propagation time of 76 ns provides accurate control of the output stage.
- An internal desaturation (DESAT) fault detection recognizes when the IGBT is in an overcurrent condition. Upon a DESAT detect, a mute logic immediately blocks the output of the isolator and initiates a soft-turnoff procedure which disables the OUTH pin and pulls the OUTL pin to low over a time span of 2 μs. When the OUTL pin reaches 2 V with respect to the most-negative supply potential, VEE2, the gate-driver output is pulled hard to the VEE2 potential, turning the IGBT immediately off.
- When desaturation is active, a fault signal is sent across the isolation barrier, pulling the FLT output at the input side low and blocking the isolator input. Mute logic is activated through the soft-turnoff period. The FLT output condition is latched and can be reset only after the RDY pin goes high, through a low-active pulse at the RST input.
- When the IGBT is turned off during normal operation with a bipolar output supply, the output is hard clamp to VEE2. If the output supply is unipolar, an active Miller clamp can be used, allowing Miller current to sink across a low-impedance path which prevents the IGBT from dynamic turnon during high-voltage transient conditions.
- The readiness for the gate driver to be operated is under the control of two undervoltage-lockout circuits monitoring the input-side and output-side supplies. If either side has insufficient supply, the RDY output goes low, otherwise this output is high.
- The ISO5852S-Q1 device is available in a 16-pin SOIC package. Device operation is specified over a temperature range from –40°C to +125°C ambient.
ISO5852SQDWRQ1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC-16 |
| Rise/Fall Time | 18ns, 20ns |
| Number of Outputs | 1 Output |
| Output Voltage | 15V ~ 30V |
| Output Current | 5 A |
| Number of Channels | 1 Channel |
| Number of Positions | 16 Position |
| Power Dissipation | 1.255 W |
| Rise Time | 18 ns |
| Isolation Voltage | 5700 Vrms |
| Fall Time | 20 ns |
| Fall Time (Max) | 20 ns |
| Fall Time (Max) | 18 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1255 mW |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.25 V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2016/06/20 |
| ECCN Code | EAR99 |
