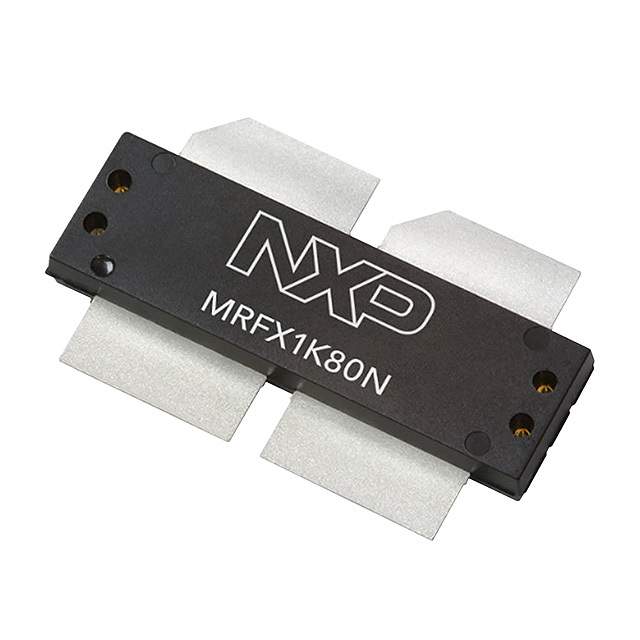

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- RF Mosfet LDMOS 65V 1.8MHz ~ 470MHz 24dB 1800W OM-1230-4L
MRFX1K80NR5 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 5 Pin |
| Case/Package | OM-1230-4L |
| Frequency | 1.8MHz ~ 470MHz |
| Number of Positions | 4 Position |
| Power Dissipation | 3.333 kW |
| Drain to Source Voltage (Vds) | 179 V |
| Output Power | 1800 W |
| Gain | 24 dB |
| Input Capacitance (Ciss) | 765pF @65V(Vds) |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 3333000 mW |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
